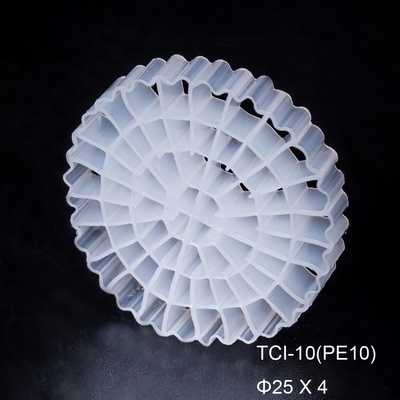

MBBR BIO FILTER PE10

MBBR BIO FILTER PE10

MBBR means: Moving Bed Bioreactor System,  this system uses a complete mix
activated sludge reactor with the addition of a floating inert media, The mixed liquor
is removed in conventional secondary clarifiers, and return sludge is pumped to the
head of the aeration tank as in conventional activated sludge systems.
Control of the concentration of MLSS is complished through wasting sludge
from the return sludge stream.

 MBBR BIO MEDIA

Benefits of MBBR systems include:
• More biomass per unit volume of aeration tank
• Flexibility, can add more media with industrial growth
• Improved settleability
• Higher WAS concentration
• Retrofit opportunities
• High relative surface area per cubic meter
• Lightweight zero buoyancy..
• Self cleaning.
• Ideal surface for biofilm to multiply.
  Ideal Applications.
• Sewage treatment.
• Aquaculture farms.
• Koi filters.

Limitations of MBBR include:
• Pretreatment required to eliminate plugging the screens
• Oil and grease may coat the media

TYPE
PE06
PE07
PE08
PE09
PE10
SPEC.
mm
Φ25X12
Φ35X18
Φ5X10
Φ15X15
Φ25X4
Hole Numbers
pcs
19
19
7
40
64
Efficient Surface
m2/m3
>500
>350
>3500
>900
>1200
Density
g/cm3
1.02-1.05
0.96-0.98
1.02-1.05
0.96-0.98
0.96-0.98
Packing numbers
pcs/m3
>970000
>330000
>2000000
>230000
>210000
Porosity
%
>90
>92
>80
>85
>85
Dosing ratio
%
15-65
15-50
15-70
15-65
15-65
Membrance-forming time
days
3-15
3-15
3-15
3-15
3-15
Nitrification efficiency
gNH4-N/m3.d
400-1200
300-800
500-1400
500-1400
500-1400
BOD5 oxidation efficiency
Gbod5/m3.d
2000-10000
2000-5000
2500-15000
2500-15000
2500-20000
COD oxidation efficiency
gcod/m3.d
2000-15000
1000-10000
2500-20000
2500-20000
2500-25000
Applicable temperature
5-60
5-60
5-60
5-60
5-60
Life - span
year
>15
>15
>15
>15
>15
