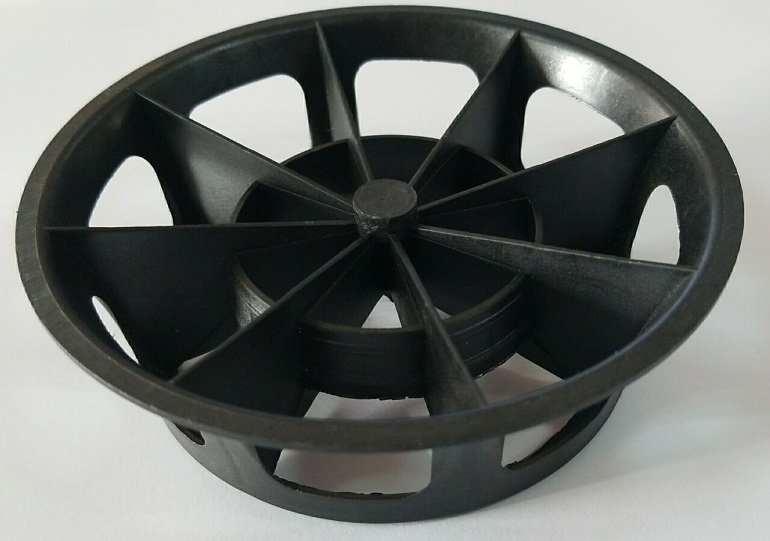

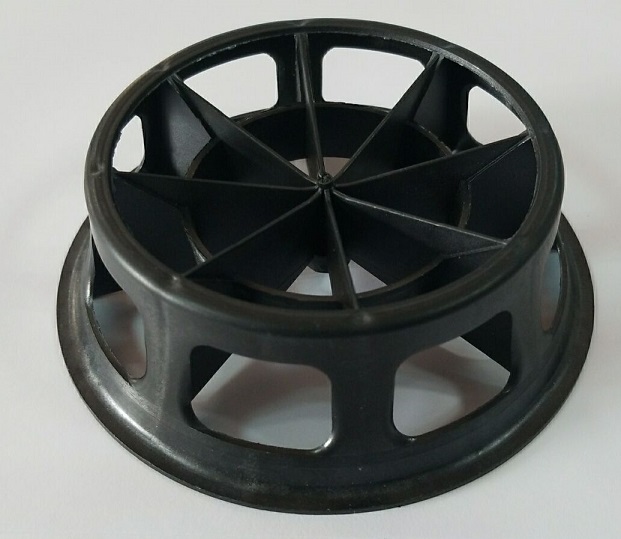

PES Cascade Mini Ring

PES Cascade Mini Ring

The Cascade Mini-Ring (CMR) is similar to the Pall ring but has a height-to-diameter ratio Intalox metal tower packing (IMTP)

Cascade Mini ring: A type of random packing that is used with packed columns.

Size available for plastic cascade ring:

16mm, 25mm, 38mm, 50mm, 76mm, 100mm

Cascade Mini-ring individual packing element. Comparison with figure 5 shows that here again the main geometrical characteristics (crosses, ... ) of the packing elements are well restituted. However, in the present case, it is less obvious to detect them on the reconstructed section. It is due to the fact that the structure of the Cascade Mini-ring packing elements is markedly more open and discontinuous than the structure of the Etapak 210 packing

Application of plastic cascade ring:

Sino-ChemPack plastic cascade ring is applied in synthetic ammonia factories decarbonization, desulfurize system, crude oil separation, and other kind of separations, such as carbinol separation, organic acid separations absorbing and desorbing towers.

Kynar PVDF CMR CASCADE MINI RING specifications:

Note:

Material of cascade ring could be PE,PP,RPP,PVC,CPVC,PVDF and so on.
