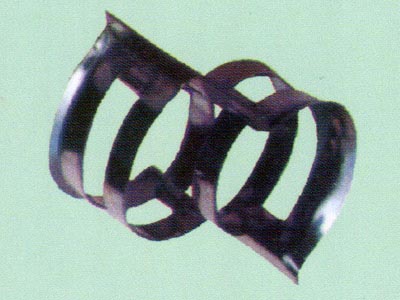

Conjugated Ring

conjugated ringconjugated ring

Features:

Conjugated ring is developed by Huanan College of Science and Engineering and features low pressure drop, high through-put and high mass transfer efficiency.

ITEM NO. DESCR PTION NOMINAL DIMENSION
(mm)
 		 OUTSIDE DIAMETER & HEIGHT
(mm)
 		 UNIT VOLUME
(rings/m3)
 		 STACK SPECIFIC GRAVITY
(kg/m3)
 		 SPECIFIC SURFACE AREA
(m2/m3)
 		 VOID VOLUME
(m3/m3)
 		 REMARKS
1 conjugated ring 25 25×25 75000 95 295 0.953 PLASTIC
2 conjugated ring 38 38×38 19500 78 117 0.957 PLASTIC
3 conjugated ring 50 50×50 9770 71 154 0.962 PLASTIC
4 conjugated ring 16 16×16 248000 446 460 0.935 δ=0.5
5 conjugated ring 25 25×25 82500 372 320 0.96 δ=0.5
6 conjugated ring 38 38×38 21500 287 210 0.975 δ=0.6
7 conjugated ring 50 50×50 9900 246 170 0.98 δ=0.8
