Molecular Sieve For Insulating Glass
Molecular Sieve For Insulating Glass
Applications:
Special molecular sieve for hollow glass is a kind of material of high affinity with water ,and it removes water in air and other impurities through the physical way of adsorption .
Purpose of using special molecular sieve for hollow glass
A. Adsorb the water in the air which was sealed in hollow glass during production.
B.During hollow glass’s life time, adsorb the water in the air continually to keep the low dewpoint<-40℃> in hollow glass.After fixing windows ,the reason of water entering into the air is:
a. Doing wrong with the aluminium frame faucet.
b. Doing wrong with the airtight glue.
c. The change of temperature causes the addition of hollow glass’s bending.
d. Airtight glue’s moisture transmittance
C. Adsorbing the volatile organic solute sealed in air during producing and the organic solute sealed in air during hollow glass’s life time.
The typical speciality:
Item
|
Unit
|
Spherical
|
Size
|
mm
|
1.6-2.5mm(8Х12mesh)
|
Package moisture
|
wt%
|
<1.5
|
Static water adsorption
|
%
|
>20
|
Nitrogen adsorption
|
wt%
|
<0.2
|
Gravity
|
kg/l
|
>0.73
|
25 grave average strength
|
N
|
>25
|
Ash
|
ppm
|
<60
|
Screen seperation
|
wt%
|
>95
|
Dry wear
|
wt%
|
<0.1
|
Effective

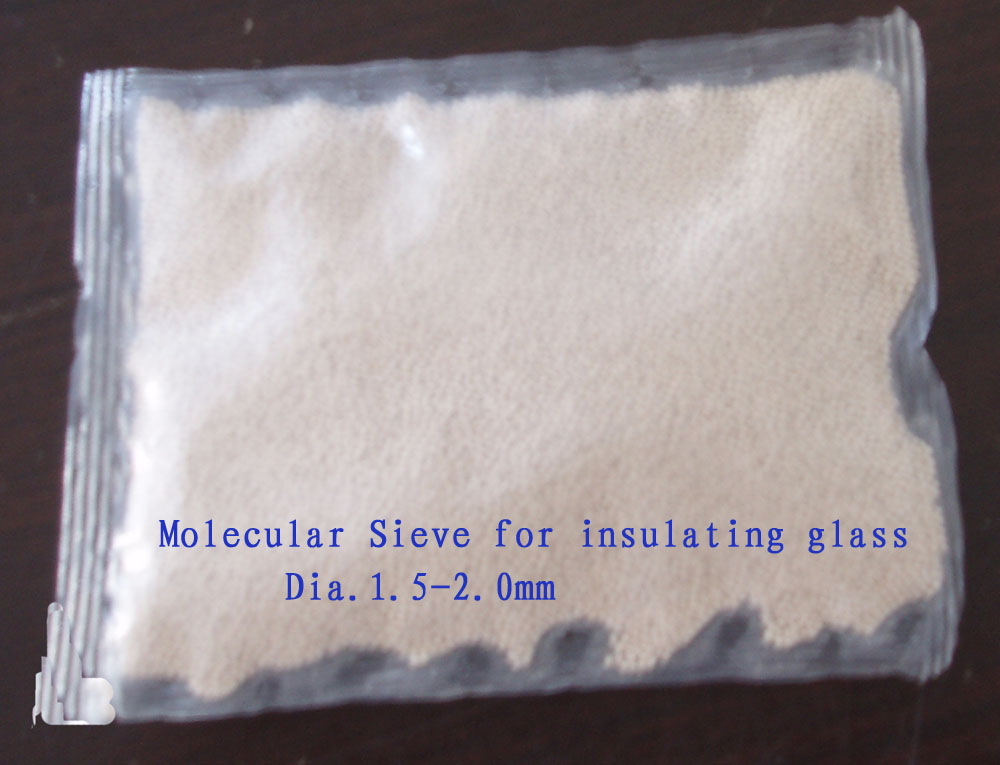

The spherical dimension of special molecular sieve for hollow glass in 1.6-2.5mm<8Х12mesh>is effective,and supplying 0.6-0.9mm,1.0-1.6mm,1.6-2.0mm,2.0-2.5mmspherical molecular sieve as requested.
Safety and operation
Look at the safe report new coporation supplies or contact the sales engineer.
Other technique information
In the New Corporation technique center,engineers have supplied data instruction and conclusion,and the sales engineers have supplied the detailed capability information and testing methods.
PS:Supplying the capability properties data before choosing products. |
