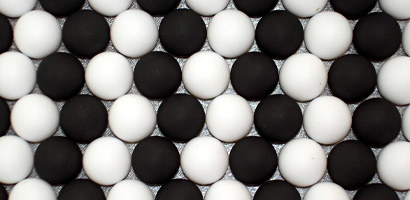

Viton Fluoroelastomer Balls
| General Information: |
| The resilient and compliant quality of these seam-free, synthetic rubber balls offers a number of advantages in non-return valve applications. Being relatively soft they provide a good seal at low pressures and eliminate the need for highly accurate seatings which are often costly to produce. Also they dampen vibration, are quiet in operation and extend valve life. |
| Basic Composition: |
| Copolymer of vinylidene fluoride and hexafluoropropylene |
| Mechanical Properties: |
|
| Hardness (Durometer) |
80 ± 4 Shore 'A' |
| Density |
0.069 lbs/cub.in. |
| Specific Gravity |
1.90 |
| Service Temperature |
-29 Deg.C to 219 Deg C (-20 Deg.F to 425 Deg F) |
| Colour |
Black |
| Size Range: |
|
| Stock Sizes |
1/8", 3/16", 1/4", 5/16", 3/8" and 1/2" |
| Tolerances: |
|
| Basic Dia.Tolerance |
±.003" |
| Sphericity |
.003" |
| Surface Finish |
Smooth & seam-free |
| Corrosion Resistance: |
| Viton is inert to nearly all acids and alkalies. It has excellent resistance to commercial fuels, lubricants, alphatic and aromatic hydrocarbons, water, steam and weathering. It is not recommended for use with esters, ketones, acetates and amines. |
|
|
