  Your Position: Home > Gaskets gland packing > Interbraid packing with para-aramid filaments

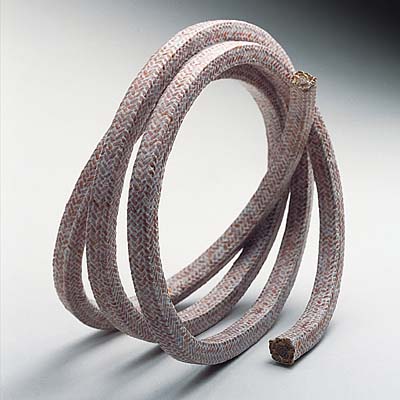

 Interbraid packing with para-aramid filamentsInterbraid packing with para-aramid filaments

Interbraid packing with para-aramid filaments
and PTFE graphitized resin
impregnated with lubricant silicone free.

 Specially designed for high speed applications and abrasive fluids, for centrifugal and alternative pumps, stirrers, pulpers, etc.
- High thermal conductivity.
- Very good mechanical resistance.
- Black color.



GB926















BAR / PSI / Mpa

50 / 725 / 5



300 / 4350 / 30

Vel. m/sec

30



8

pH



2 - 12



Temp. °C



-100   +260



Temp. °F



-148   +500







进口芳纶纤维盘根是由杜邦Kevlar纤维,经浸渍聚四氟乙烯乳液和润滑剂处理编织而成。由于Kevlar纤维其强度和模量有钢丝之称(被称为人造金属线),所以此盘根与其它编织盘根相比,能承受更高的介质压力。在泵系统内还能作为石棉的代替品,其性能比石棉更优异,使用寿命更长等性能。
进口芳纶盘根适用设备:
水泵,阀,管道、容器等密封。
进口芳纶盘根适用行业:
污水、水泵、石油、化学、纸浆、砂浆、锡矿、电力等恶劣场所泵密封。
进口芳纶盘根适用介质:
适用于含固体颗粒的易磨损介质,推荐使用于蒸汽、有机溶剂、固液混合的流体装置。
进口芳纶纤维盘根产品规格:
3*3mm--100*100mm;特殊规格或各类非标准可按客户要求制定。
进口芳纶纤维盘根的技术参数:
压力 (Pressure)   8-25Mpa
温度(Temperature ) -100~280℃
PH值(PH range) 2~13
线速度(Linear speed ) 0-15米/秒 m/s
密度(Density) 1.3~ 1.4g/cm3
