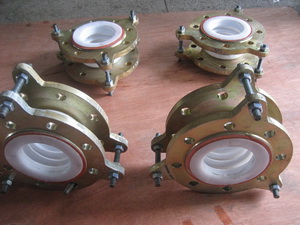

3 convolutes PTFE expansion joints

3 convolutes PTFE expansion joints　 (also known as expansion joint), for corrosive media compensate for thermal expansion and contraction of piping system displacement and misalignment, to reduce the vibration of piping system.

PTFE bellows through special processing methods, changes the characteristics of song around the pipe can not be resistant to various concentrations of acid, alkali, salt. It can be used to connect machines with lower graphite, ceramic glass pipes, can be used for tank car, tank, container or to the reactor, discharge tubes, pipes can be used to balance connections or dislocation due to climate or other causes since the pipe displacement, size changes or to eliminate high-frequency mechanical vibration. Can be made for special occasions, tubular reactor or heat exchanger and so on.
Basic parameters:
① Nominal pressure MPa: -0.01, -0.05,0.01,0.05,0.1,0.25,0.6,1;
② DN and compensation table below;
③ operating temperature of -50 ~ 150 ℃, exceeds 150 ℃, the settlement agreement by both parties.

3 convolutes PTFE expansion joints used for chemical, pharmaceutical and food industry pipe system compensation, and has a preservative effect.

TCI is specialized in manufacturing PTFE expansion joints,
Sizes include:
1"
1.1/2"
2"
2.1/2"
3"
4"
5"
6"
8"

Flanges: Carbon steel, SS304, SS316 etc
Standard: ANSI, DIN, JIS etc
Class: 150#, PN10, PN16, JIS10K etc
Convolutes: 2, 3, 4 etc.
