Wire mesh screen

wire mesh screen, wire mesh sieving, wire mesh demister

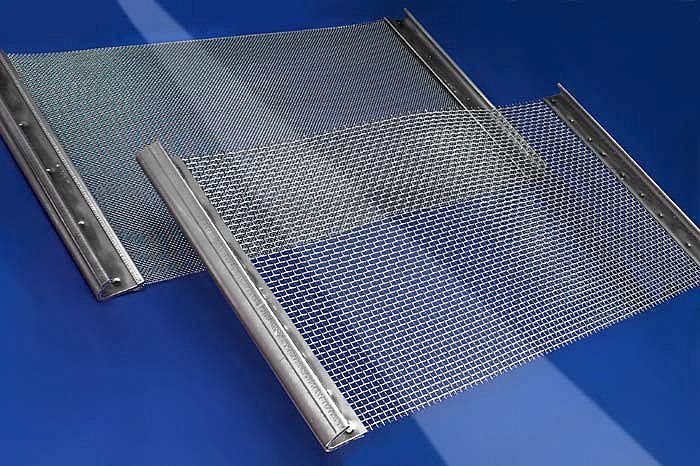

We manufacture Industrial Wire mesh Screens for all types of Vibrating Screens. The most common types wire mesh screens are fixed on two sides of the screen section, called either End Tensioning or Side Tensioning Screens.
For special Vibrating Screens there are screen sections with reinforced edges on all four sides.

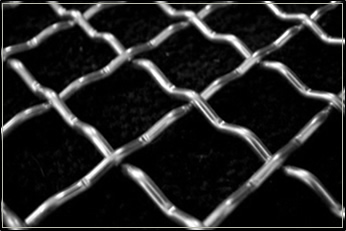

| Specification List of Crimped Wire Mesh/Wire Mesh for Roast |
|
Wire Gauge
SWG
|
Wire Diameter
mm
|
Mesh/Inch |
Aperture
mm
|
Weight
kg/m2
|
| 14 |
2.0 |
21 |
1 |
4.2 |
| 8 |
4.05 |
18 |
1 |
15 |
| 25 |
0.50 |
20 |
0.61 |
2.6 |
| 23 |
0.61 |
18 |
0.8 |
3.4 |
| 24 |
0.55 |
16 |
0.1 |
2.5 |
| 24 |
0.55 |
14 |
0.12 |
4 |
| 22 |
0.71 |
12 |
0.14 |
2.94 |
| 19 |
1 |
2.3 |
0.18 |
1.45 |
| 6 |
4.8 |
1.2 |
2 |
20 |
| 6 |
4.8 |
1 |
2 |
20 |
| 6 |
4.8 |
0.7 |
3 |
14 |
| 14 |
2.0 |
5.08 |
0.3 |
12 |
| 14 |
2.0 |
2.1 |
1 |
2.5 |
| 14 |
2.0 |
3.6 |
1.5 |
1.9 |
|
