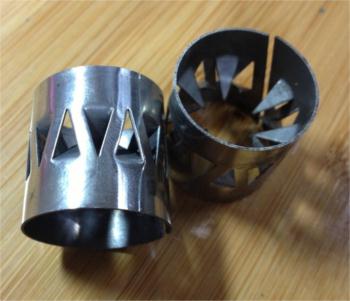

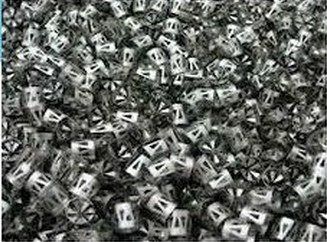

Titanium Bialecki ring

Metal Michael Bialecki rings, metal and plastic Pall rings,and ceramic Intalox saddles
are Most common packing materials. Each packing material of this newer generation
improves the surface area, the flow area, and/or the associated pressure drop across the packing.
Also important, is the ability of the packing material to not stack on top of itself. If such stacking
occurs, it drastically reduces the surface area of the material. Lattice design work has been
increasing of late that will further improve these characteristics.

Size (d x l x t) mm	RANDOM PACKING						STRUCTURED PACKING
Size (d x l x t) mm	piece/m³		Specific surface m²/m³		Free volume m³/m³	Weight of steel kg/m³	piece/m³ as packet	Specific surface m²/m³	Free volume m³/m³	Weight of steel kg/m³
Pall or Raschig rings
80x80x0.8	1600	67.720		0.9744		205	2141	90.618	0.9657	274
80x80x0.7	1600	67.255		0.9776		179	2141	89.995	0.9700	240
80x80x0.6	1600	66.790		0.9808		153	2141	89.373	0.9743	205
80x80x0.5	1600	66.325		0.9840		128	2141	88.751	0.9786	171
50x50x0.8	6500	110.776		0.9592		327	8944	152.428	0.9438	449
50x50x0.7	6500	109.685		0.9643		286	8944	150.927	0.9509	393
50x50x0.6	6500	108.594		0.9694		245	8944	149.426	0.9579	337
50x50x0.5	6500	107.504		0.9745		204	8944	147.925	0.9649	281
50x50x0.4	6500	106.413		0.9796		163	8944	146.425	0.9719	225
35x35x0.7	19000	160.744		0.9493		406	26262	222.216	0.9293	561
35x35x0.6	19000	158.490		0.9565		348	26262	219.100	0.9396	481
35x35x0.5	19000	156.237		0.9638		290	26262	215.985	0.9495	401
35x35x0.4	19000	153.984		0.9710		232	26262	212.870	0.9596	321
25x25x0.6	52000	242.694		0.9427		490	72680	399.212	0.9144	685
25x25x0.5	52000	238.212		0.9522		408	72680	332.947	0.9286	571
25x25x0.4	52000	233.730		0.9618		327	72680	326.683	0.9429	456
12x12x0.4	440000	456.896		0.9229		617	662650	688.896	0.8839	929
12x12x0.3	440000	439.032		0.9422		463	662650	661.192	0.9129	697

Material: steel, stainless steel, copper, Titanium , duplex and other on request. Thickness of steel on Your demand.
