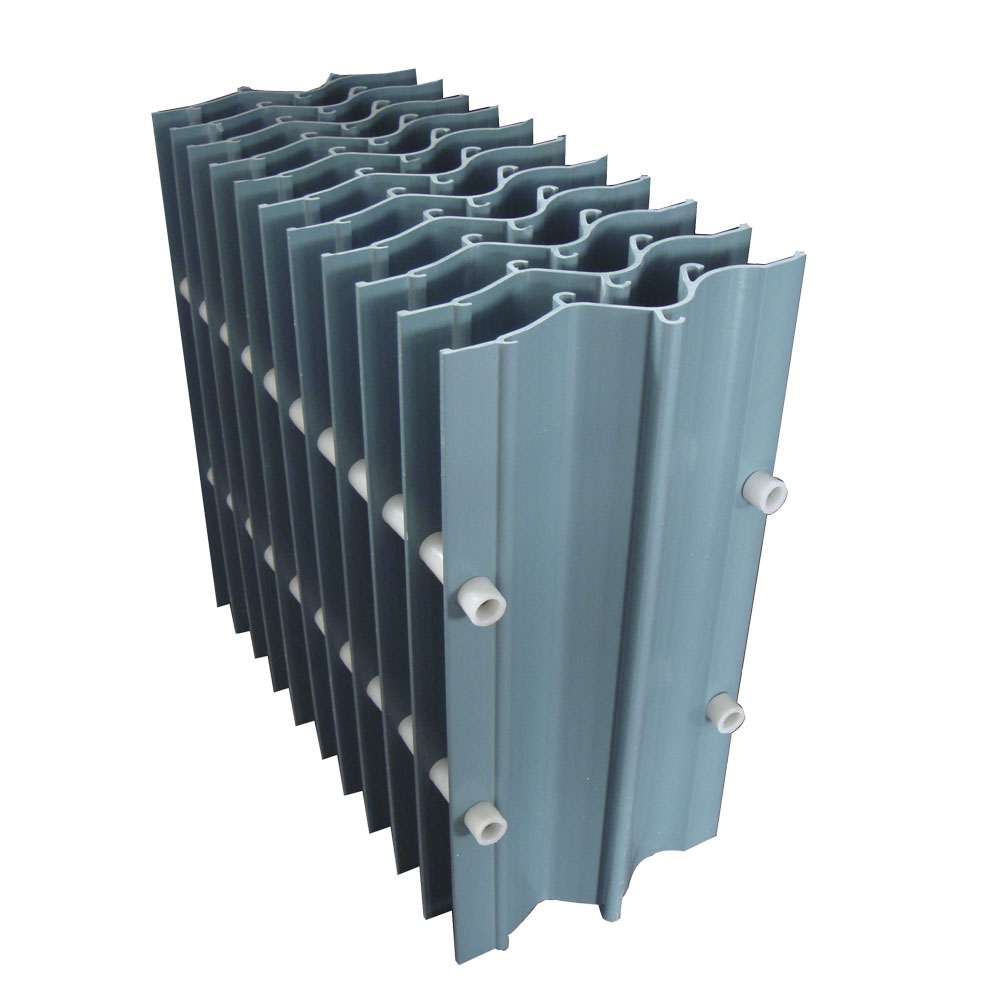

PVC mist eliminater
PVC mist eliminators are available in different shapes in extruded PVC and offer a low pressure drop.
They precipitate the suspended water particles and allow only a homogeneous mixture of air
with moisture.
1.Material of ABS, PVC, Stainless steel, Galvanized sheet.
2.Optional: Frame
3.Spacing 30mm.
4.All sizes are ok
| Space |
Data |
2.5 |
3.5 |
4.5 |
5.5 |
6.5 |
7.5 |
| m/s |
m/s |
m/s |
m/s |
m/s |
m/s |
| 22 |
Resistance loss(pa) |
25.4 |
49.6 |
76.3 |
113.6 |
161.3 |
206.6 |
| (mm) |
Water pass (g/kg) |
0.9 |
0.13 |
0.16 |
0.23 |
0.27 |
0.35 |
| 24 |
Resistance loss(pa) |
21.8 |
40.2 |
52.3 |
74.9 |
110.2 |
114.6 |
| (mm) |
Water pass (g/kg) |
0.12 |
0.18 |
0.24 |
0.3 |
0.36 |
0.42 |
| 26 |
Resistance loss(pa) |
20.1 |
32 |
50.2 |
74.4 |
102.2 |
141.1 |
| (mm) |
Water pass (g/kg) |
0.23 |
0.29 |
0.34 |
0.4 |
0.47 |
0.52 |
| 28 |
Resistance loss(pa) |
18.1 |
30.9 |
46.3 |
69.5 |
98.6 |
132.7 |
| (mm) |
Water pass (g/kg) |
0.33 |
0.38 |
0.42 |
0.48 |
0.54 |
0.6 |
| 30 |
Resistance loss(pa) |
15.4 |
28.1 |
42.9 |
60.4 |
88.5 |
123 |
| (mm) |
Water pass (g/kg) |
0.43 |
0.49 |
0.55 |
0.61 |
0.68 |
0.74 |
|
