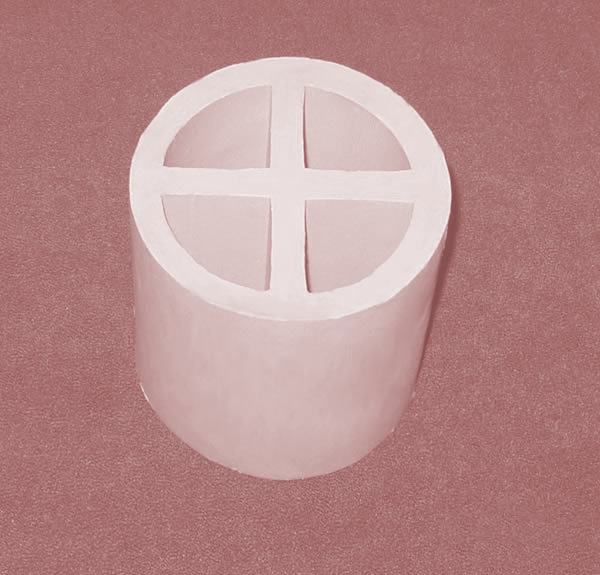

Ceramic Cross Partition Ring

Ceramic Cross Partition Ring is a kind of random packing further improved on the basis of Raschig Ring, adding the cross clapboard inside the ring. It increases the ring’s surface area, improving significantly the mass transfer efficiency of vapor and liquid. Generally, cross partition ring is required to stack orderly in the column due to its big size. Currently, cross partition rings, size between Φ80-Φ150mm, are used as the support material of other random packing at the bottom of column, which accumulation voidage is over 60%. With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cross Partition Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.

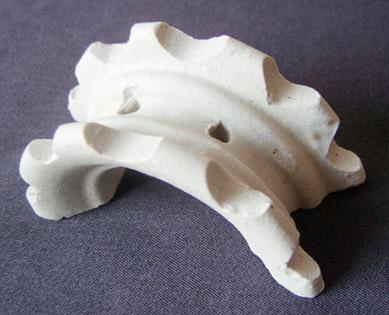

Ceramic Super Saddle

Ceramic Super Saddle is a kind of random packing further developed on the basis of Saddle Ring, which both smooth edges are changed to hackly or ripple edges. Comparing with normal saddle, such structure of super saddle can ensure that interspace will be increased a lot when saddles are stacked in the column randomly.

Therefore, the resistance to vapor-liquid is decreased and it facilitates flow and distribution of vapor-liquid through the packing bed. As a result, pressure drop is low and mass transfer efficiency is high.

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Super Saddle can resist high or low temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.


Index

Value

Porosity (Vol%)

1

Specific heat (KJ/Kg)

840-900

Crush strength (N/mm2)

390-420

Specific gravity (g/cm3)

2.3-2.45

Acid resistance (%)

99.98

Firing temperature (℃)

1280 – 1320

Softening temperature (℃)

>1400

Density (Kg/m3)

2300 – 2400

Water absorption (%)

<0.2

Thermal expansion (10-6mm/mm℃)

4.7

Hardness Scale (Moh's)

7 – 8

Comprehensive strength (N)

5600

Shock strength (Kgf.cm/cm2)

1.0 – 1.5
