(1) Product Description

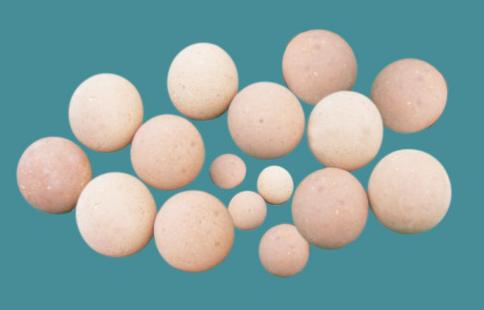

Refractory ceramic balls are made from industrial alumina and other raw refractory materials, and processed by mixing, shaping and firing .It has properties of 1.High strength and long working life; 2.High chemical stability and never react with the feeding materials; 3.Excellent resistance to high temperature up to 1900.Refractory ceramic balls can be used as support and covering packings for catalyst in shift converter, reformer, hydro converter, desulfurizer, and methanator, and can also be used as packings in hot blast heater and heat transformer in iron and steel industries.
(2) Technical Specification
|
Type
Item
|
General
HQ-RF-1
|
Corundum
HQ-RF-2
|
Low silicate
HQ-RF-3
|
|
Chemical composition
%
|
Al2O3
|
30-90
|
90-98
|
≥99
|
|
SiO2
|
10-70
|
0.5-5.0
|
≤0.3
|
|
Fe2O3
|
≥1450
|
≥1750
|
≥1850
|
|
Refractoriness，℃
|
≤1
|
≤0.5
|
≤0.1
|
|
Thermal shock resistance，℃
|
600
|
800
|
800
|
|
Crushing strength，N
|
100-20000 Deferent upon types and sizes
|
|
Mohs’ hardness，scal
|
≥7
|
≥8
|
≥9
|
|
Acid resistance,%
|
≥95
|
≥98
|
≥98
|
|
Alkali resistance,%
|
≥85
|
≥95
|
≥98
|
|
Bulk density,kg/m3
|
1200-1600
|
1800-2000
|
2000-2200
|
(3)Size
|
Diameter,Φ
|
6
|
8
|
10
|
13
|
16
|
20
|
25
|
30
|
38
|
50
|
60
|
75
|
|
Tolerance,mm
|
±1.0
|
±1.5
|
±2.0
|
±3.0
|
|
Diameter of hole,mm
|
2-3
|
3-5
|
5-8
|
8-10
|
RF Refractory ball can be perforated if upon request by the users.
|
