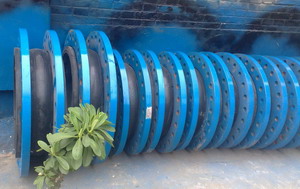

Single Sphere rubber Expansion
single sphere connectors are ideal for absorbing small stress motions and absorbing the noise and vibration emitted by mechanical equipment. The face-to-face dimensions of these single sphere connectors match the corresponding dimensions of spool type expansion joints, facilitating direct replacements. This short face-to-face dimension translates to economy of space in the piping system and ease of handling and installation.
|
.jpg)
|
|
Single Sphere rubber ExpansionThe shape of the bellows gives the expansion joint a higher flexibility and allows larger movements.
For all sizes the overall length is 130 mm.
|
| |
The maximum allowable pressure must be adjust by one of the factors below at operating temperatures over 80°C.
| 85°C |
90°C |
95°C |
100°C |
105°C |
| 0,92 |
0,83 |
0,75 |
0,67 |
0,60 |
|
| |
|
* up to 80°C
|
Burst pressure:
Temperature:
|
60 barg (1¼" - 8")
40 barg (10" - 12")
-10C° to 105C° |
|
|
