Cam profile Gaskets

Cam profile gaskets are made Regarding AINSI-Flanges Class 150 up to Class 2500 for DIN-Flanges PN 10 up to PN 400 according our specifications.

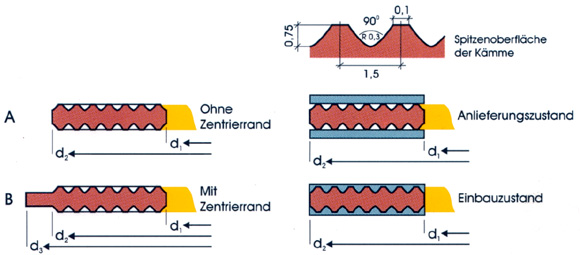

Cam Profile Gaskets with pure graphite and revolved centering according to DIN 2697 Form A and Form B. Can be delivered for nut- and spring applications as well.

Materials for Cam Profile Gaskets including:
1.4541, 1.4571, 1.7335, Soft Iron; other materials on request. Coating of gaskets: pure Graphite, PTFE or Aramid.

Based on reasons regarding corrosion we prefer to deliver pure graphite coatings having a thickness of 0,5 mm per surface. Therefore the thickness of gaskets within the state of delivery is 4+1=5 mm. Applying an optimal state of moldability within the state of installation an excess length of roundabout 0,15 mm of graphite will remain over the cams. This causes protection damage of the flange surfaces based on highest denseness.



Limits of application for cam profile gaskets:
t_max = - 20°C u 550°C; pH = 0 - 14

p up to 400 bar (> 400 bar on request)

Application for cam profile gaskets.

Power drive. For flanges and similar materials in Chemistry, Petrochemicals, Power Plant Technology and others.

Cam Profile Gaskets - Flanges PN 10 up to PN 400
Measures in mm DN d1 d2			10 16 25 40 64 100 160 250 320 400 d3
10	22	36	46	46	46	46	56	56	57	67	67	67
15	26	42	51	51	51	51	61	61	61	72	72	72
20	31	47	61	61	61	61	-	-	-	-	-	-
25	36	52	71	71	71	71	82	82	82	83	92	104
32	46	66	82	82	82	82	-	-	-	-	-	-
40	53	73	92	92	92	92	103	103	103	109	119	135
50	65	87	107	107	107	107	113	119	119	124	134	150
65	81	103	127	127	127	127	137	143	143	153	170	192
80	95	121	142	142	142	142	148	154	154	170	190	207
100	118	144	162	162	168	168	174	180	180	202	229	256
125	142	176	192	192	194	194	210	217	217	242	274	301
150	170	204	217	217	224	224	247	257	257	257	311	348
175	195	229	247	247	254	265	277	287	284	316	358	402
200	224	258	272	272	284	290	309	324	324	358	398	442
250	275	315	327	328	340	352	364	388	391	442	488	-
300	325	365	377	383	400	417	424	458	458	536	-	-
350	375	420	437	443	457	474	486	512	-	-	-	-
400	426	474	489	495	514	543	546	572	-	-	-	-
450	480	528	539	555	-	571	-	-	-	-	-	-
