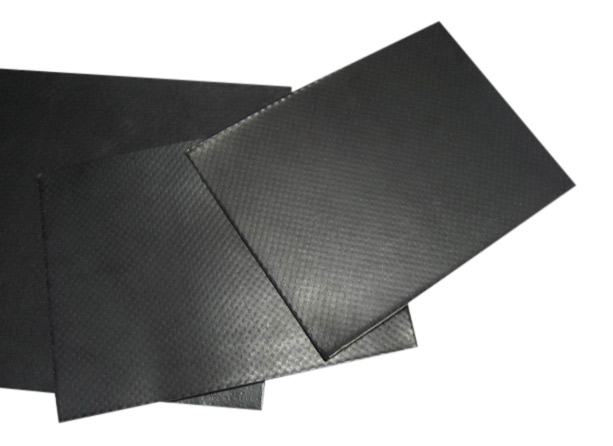

Tanged SS316/316L Reinforced Graphite Sheets
| Description: |
Manufactured from flexible graphite foil mechanically clinched to a 0.004" (0.1 mm) thick stainless steel tanged (perforated) metal sheet - SS316/316L insert. It has good compressibility and resilience, excellent sealing property for microscopic surface irrgeularities and long working life. Recommended to use in pipework and vessels in the chemical and petrochemical industries and power stations.
Product Date Sheet
Temperature: -200~450ºn Oxidizing media)
-200~800ºn non-oxidizing media)
Stability under compressive stress: >=48N/mm2
Compressibility: 30~40
Recovery: 15-30
Standard Sheet Size:
1000mm x 1000mm
1000mm x 1500mm
1000mm x 2000mm
1500mm x 1500mm
1500mm x 2000mm
Thickness :1.0mm~4.0mm
Special specification can be production for require. |
|
