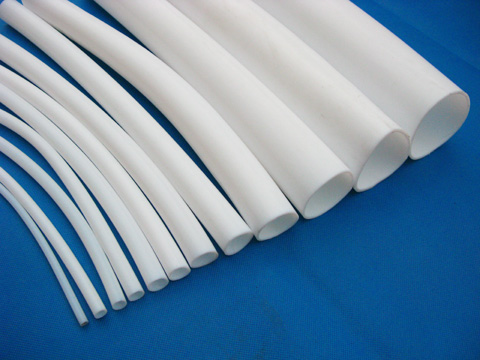

PTFE Tubing
.jpg)
Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene that finds numerous applications. The best known brand name of PTFE is Teflon by DuPont Co.
PTFE is a fluorocarbon solid, as it is a high-molecular-weight compound consisting wholly of carbon and fluorine. PTFE is hydrophobic: neither water nor water-containing substances wet PTFE, as fluorocarbons demonstrate mitigated London dispersion forces due to the high electronegativity of fluorine. PTFE has one of the lowest coefficients of friction against any solid.
Detailed Product Description
|
| No. |
Nominal Diameter |
Outer Diameter x Inner Diameter |
Weight(g/m) |
| 1 |
PTFE tube φ2 |
φ3xφ2 |
8.65 |
| |
|
φ4xφ2 |
20.8 |
| |
|
φ5xφ2 |
36.3 |
| 2 |
PTFE tube φ3 |
φ4xφ3 |
12.1 |
| |
|
φ5xφ3 |
27.6 |
| |
|
φ6xφ3 |
46.7 |
| 3 |
PTFE tube φ4 |
φ5xφ4 |
15.6 |
| |
|
φ6xφ4 |
34.6 |
| |
|
φ7xφ4 |
57 |
| 4 |
PTFE tube φ5 |
φ6xφ5 |
19 |
| |
|
φ7xφ5 |
41.5 |
| |
|
φ8xφ5 |
67.4 |
| |
|
φ9xφ5 |
96.8 |
| 5 |
PTFE tube φ6 |
φ7xφ6 |
22.5 |
| |
|
φ8xφ6 |
48.4 |
| |
|
φ9xφ6 |
77.8 |
| |
|
φ10xφ6 |
110.6 |
| 6 |
PTFE tube φ7 |
φ8xφ7 |
25.9 |
| |
|
φ9xφ7 |
55.3 |
| |
|
φ10xφ7 |
88.1 |
| |
|
φ11xφ7 |
124.2 |
| |
|
φ12xφ7 |
164.4 |
| 7 |
PTFE tube φ8 |
φ9xφ8 |
29.4 |
| |
|
φ10xφ8 |
62.3 |
| |
|
φ11xφ8 |
98.5 |
| |
|
φ12xφ8 |
138.4 |
| |
|
φ13xφ8 |
181.7 |
| 8 |
PTFE tube φ9 |
φ10xφ9 |
32.9 |
| |
|
φ11xφ9 |
69.1 |
| |
|
φ12xφ9 |
109 |
| |
|
φ13xφ9 |
152.2 |
| |
|
φ14xφ9 |
199 |
| 9 |
PTFE tube φ10 |
φ12xφ10 |
76.1 |
| |
|
φ13xφ10 |
119.1 |
| |
|
φ14xφ10 |
166 |
| |
|
φ15xφ10 |
216.3 |
| |
|
φ16xφ10 |
269.9 |
| 10 |
PTFE tube φ11 |
φ13xφ11 |
83 |
| |
|
φ14xφ11 |
129.8 |
| |
|
φ15xφ11 |
179.9 |
| |
|
φ16xφ11 |
233.6 |
| |
|
φ17xφ11 |
290.6 |
| 11 |
PTFE tube φ12 |
φ14xφ12 |
90 |
| |
|
φ15xφ12 |
140 |
| |
|
φ16xφ12 |
193.8 |
| |
|
φ17xφ12 |
250.9 |
| |
|
φ18xφ12 |
311.4 |
| 12 |
PTFE tube φ13 |
φ15xφ13 |
96.8 |
| |
|
φ16xφ13 |
150.5 |
| |
|
φ17xφ13 |
207.6 |
| |
|
φ18xφ13 |
268.2 |
| |
|
φ19xφ13 |
332.2 |
| 13 |
PTFE tube φ14 |
φ16xφ14 |
103.9 |
| |
|
φ17xφ14 |
160.7 |
| |
|
φ18xφ14 |
221.5 |
| |
|
φ19xφ14 |
285 |
| |
|
φ20xφ14 |
352.9 |
| 14 |
PTFE tube φ15 |
φ17xφ15 |
110.5 |
| |
|
φ18xφ15 |
171 |
| |
|
φ19xφ15 |
235.2 |
| |
|
φ20xφ15 |
302.8 |
| |
|
φ21xφ15 |
373.7 |
| 15 |
PTFE tube φ16 |
φ18xφ16 |
117.5 |
| |
|
φ19xφ16 |
182 |
| |
|
φ20xφ16 |
249 |
| |
|
φ21xφ16 |
320 |
| |
|
φ22xφ16 |
394.4 |
| 16 |
PTFE tube φ18 |
φ20xφ18 |
131.5 |
| |
|
φ21xφ18 |
202.4 |
| |
|
φ22xφ18 |
276.6 |
| |
|
φ23xφ18 |
354.7 |
| |
|
φ24xφ18 |
436 |
| 17 |
PTFE tube φ20 |
φ22xφ20 |
145.3 |
| |
|
φ23xφ20 |
223.2 |
| |
|
φ24xφ20 |
304.5 |
| |
|
φ25xφ20 |
389.3 |
| |
|
φ26xφ20 |
477.5 |
| 18 |
PTFE tube φ22 |
φ24xφ22 |
159.2 |
| |
|
φ25xφ22 |
243.9 |
| |
|
φ26xφ22 |
332.2 |
| |
|
φ27xφ22 |
423.9 |
| |
|
φ28xφ22 |
519 |
| 19 |
PTFE tube φ25 |
φ27xφ25 |
180 |
| |
|
φ28xφ25 |
275.1 |
| |
|
φ29xφ25 |
373.7 |
| |
|
φ30xφ25 |
475.8 |
| |
|
φ31xφ25 |
581.3 |
| 20 |
PTFE tube φ32 |
φ35xφ32 |
347.7 |
| |
|
φ36xφ32 |
470.6 |
| |
|
φ37xφ32 |
596.9 |
| |
|
φ38xφ32 |
726.6 |
| 21 |
PTFE tube φ36 |
φ39xφ36 |
389.3 |
| |
|
φ40xφ36 |
525.9 |
| |
|
φ41xφ36 |
666.1 |
| |
|
φ42xφ36 |
810 |
| 22 |
PTFE tube φ38 |
φ41xφ38 |
410 |
| |
|
φ42xφ38 |
553.6 |
| |
|
φ43xφ38 |
700.7 |
| |
|
φ44xφ38 |
851.2 |
| 23 |
PTFE tube φ40 |
φ43xφ40 |
430.8 |
| |
|
φ44xφ40 |
581.3 |
| |
|
φ45xφ40 |
735.3 |
| |
|
φ46xφ40 |
892.7 |
| 24 |
PTFE tube φ47 |
φ50xφ47 |
503.4 |
| |
|
φ51xφ47 |
678.2 |
| |
|
φ52xφ47 |
856.4 |
| |
|
φ53xφ47 |
1038 |
| 25 |
PTFE tube φ49 |
φ53xφ49 |
705.8 |
| |
|
φ54xφ49 |
891 |
| |
|
φ55xφ49 |
1079.5 |
| |
|
φ56xφ49 |
1271.6 |
| 26 |
PTFE tube φ50 |
φ54xφ50 |
719.7 |
| |
|
φ55xφ50 |
908.3 |
| |
|
φ56xφ50 |
1100.3 |
| 27 |
PTFE tube φ65 |
φ67xφ63 |
899.6 |
| |
|
φ68xφ63 |
1133.2 |
| |
|
φ69xφ63 |
1370.2 |
| 28 |
PTFE tube φ80 |
φ81xφ76 |
1358.1 |
| φ82xφ76 |
1640 |
| φ83xφ76 |
1925.5 |
|
|
