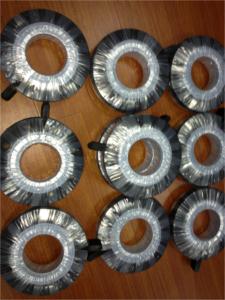

DIN2501 FULL FACE PTFE-EPDM GASKETS

ASAHI GASKETS, ALSO CALLED PTFE BONDED EPDM GASKETS,
they are made by PTFE bonded EPDM gaskets,  as PTFE can
resist -250℃ to 250℃, and EPDM can resist only -40℃ to 150℃
PTFE parts made in 0.5mm thickness each side, and EPDM part
made in 2mm thickness.
Thus, the gaskets can be replaced to Pure solid PTFE,
or EPDM gaskets, to be used in Chemical conditions.


We can make the FULL FACE PTFE-EPDM GASKETS
IN DIN2501, ASME B 16.5, JIS10K, SABS 1123,BS4504 standards.

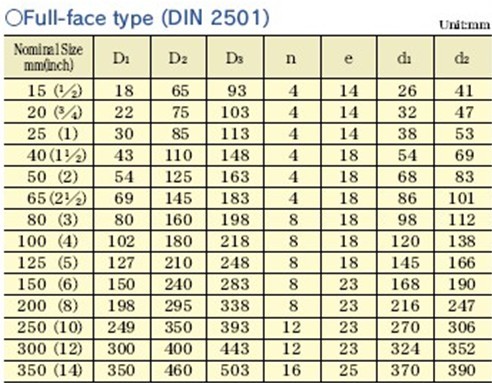

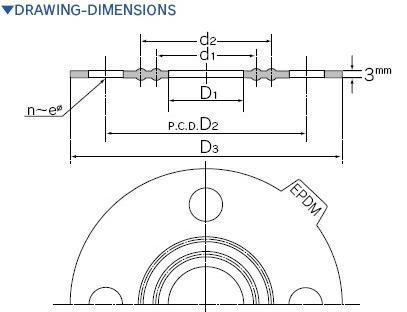

IN DIN2501 standard.
