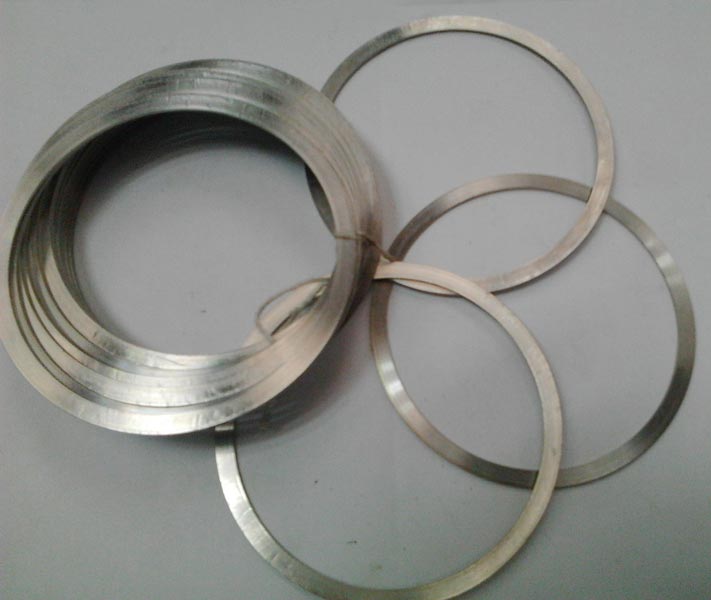

DUPLEX UNS 32760 gaskets shims

Product Name :

UNS S32570(SAF2507) UNS S32760 super duplex stainless steel pipe/tube

Item Code :

40177078

Category:

Stainless Steel Pipes

Keywords :

EN(DIN)/1.4410/1.4501 super duplex stainless steel pipe/tube,UNS S32750/S32760 steel pipe/Tube,F53/F55 super duplex steel pipe/tube

Standard :

JIS, AISI, ASTM, GB, DIN, EN

Outer Diameter:

8mm----273mm

Type:

Seamless

Steel Grade:

300 Series

Thickness:

SCH5--SCH XXS

Port:

ningbo or shanghai

Application:

petroleum,chemical industry

Certification:

BV

Specifications

Available Products:Seamless pipe,SMLS/Butt-welded/SW pipe fittings,Flanges,Forgings,Bar/Rod/,U tube,Coil pipe

super duplex Stainless steel

UNS S32750 & UNS S32760

Trade Name	UNS	Super Duplex Industry Specifications	Chemical Composition	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation 2" %
SAF 2507	UNS S32750	ASTM A182 F53, A240, A479, A789, A790, A815, A928, A949, A988 SAE J405	C 0.030 max Cr 24.0-26.0 Mn 1.20 max Mo 3.0-5.0 N 0.24-0.32 Ni 6.0-8.0 P 0.035 max S 0.020 max Si 0.8 max	116	80	15
	UNS S32760	ASTM A182 F55, A240, A276, A314, A473, A479, A789, A790, A815, A988 SAE J405	C 0.03 max Cr 24.0-26.0 Cu 0.5-1.0 Mn 1.0 max Mo 3.0-4.0 N 0.2-0.3 Ni 6.0-8.0 P 0.03 max S 0.01 max Si 1.0 max W 0.5-1.0 Other %Cr+3.3x%Mo+16x%N = 40 min	109	80	15

This is a Duplex alloy stainless steel designed to feature high strength, resistance to pitting, stress corrosion cracking, erosion corrosion and corrosion fatigue, crevice corrosion and strong weldability.
