  You are in : Home>> expansion joint >>rubber expansion joint >>DRILLING RUBBER HOSE

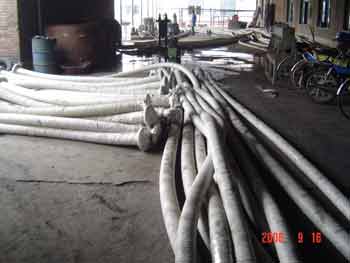

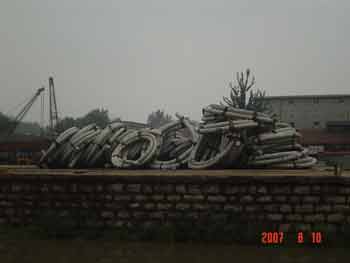

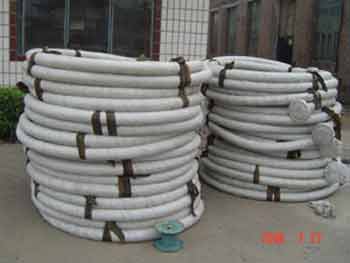

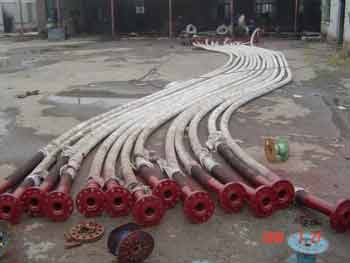

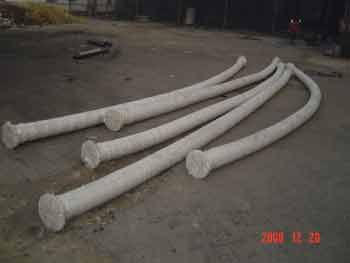

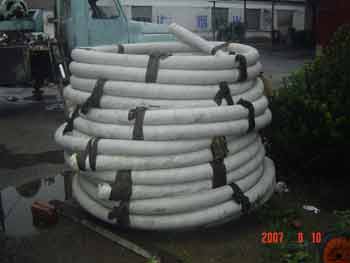

DRILLING RUBBER HOSE

Construction: it is composed of an inner rubber layer protection layer, middle rubber layer, steel wire spiral layer and external rubber cover

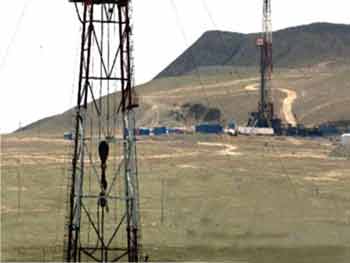

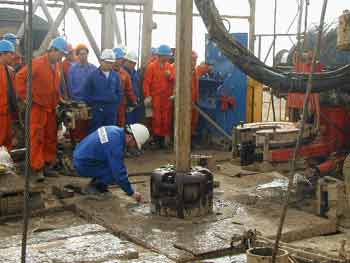

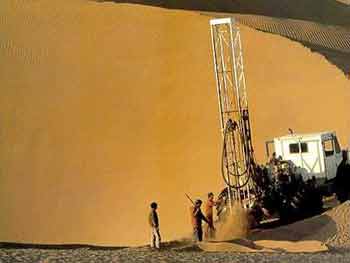

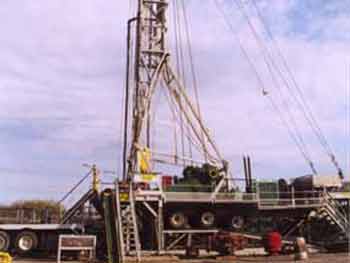

Use: The steel wire spiral drilling rubber hose are used in oil field well cementing. well pulling , petroleum geology exploration, small drilling machine, water conveyance, coal excavation. Used to carry slurry, normal temperature water, and other fluids.

execution specification: API SPEC 5CT、API SPEC STD 5B、API RP 5C1、API RP 5A5、API RP 5B1、API BUL 5C3 SY/T 6194-2003、GB/T 9253.2-1999、GB/T17745-1999、SY/T 6474-2000、GB/T18052-2000、SY/T 6328-1997


Hose size

Inside
Diameter
mm

Reinforcement
Diameter
mm

Outside
Diameter
mm

Working Pressure
Mpa

Proof Pressure
Mpa

Burst Pressure
Mpa

Min.Bend
Radius
mm

Weight Kg/m
MPA
Psi
Mpa
Psi
MPa
Psi
2sp-51-15
51±1.0
62±1.0
66±1.5
15
2160
30
4320
45
6480
800
4.7
2sp-64-15
64±1.2
75±1.0
79±1.5
15
2160
30
4320
45
6480
1000
5.6
2sp-76-15
76±1.4
94±1.5
98±2
15
2160
30
4320
45
6480
1100
14.2
2sp-89-15
89±1.4
109±1.5
113±2
15
2160
30
4320
45
6480
1200
15.4
2sp-102-15
102±1.5
123±1.5
127±2
15
2160
30
4320
45
6480
1300
17.3
4sp-51-35
51±1.0
68±1.0
73±1.5
35
5072
70
10143
87.5
12960
900
5.7
4sp-64-35
64±1.2
85±1.0
91±1.5
35
5072
70
10143
87.5
12960
1100
6.7
4sp-76-35
76±1.4
98±1.5
103±2
35
5072
70
10143
87.5
12960
1200
16.2
4sp-89-35
89±1.4
118±1.5
123±2
35
5072
70
10143
87.5
12960
1300
18.4
4sp-102-35
102±1.5
132±1.5
139±2
35
5072
70
10143
87.5
12960
1400
20.3
6sp-51-70
51±1.0
76±1.0
82±1.5
70
10143
140
20286
175
25358
1000
6.2
6sp-64-70
64±1.2
98±1.0
104±1.5
70
10143
140
20286
175
25358
1200
7.4
6sp-76-70
76±1.4
123±1.5
129±2
70
10143
140
20286
175
25358
1300
23.7
6sp-89-70
89±1.4
138±1.5
144±2
70
10143
140
20286
175
25358
1400
26.6
6sp-102-70
102±1.5
152±1.5
158±2
70
10143
140
20286
175
25358
1600
29.8
DRILLING RUBBER HOSE DRILLING RUBBER HOSE
DRILLING RUBBER HOSE DRILLING RUBBER HOSE
DRILLING RUBBER HOSE DRILLING RUBBER HOSE
DRILLING RUBBER HOSE DRILLING RUBBER HOSE
DRILLING RUBBER HOSE DRILLING RUBBER HOSE
