Single Sphere Expansion Joint
SERIES SF-130

rubber expansion

rubber expansion

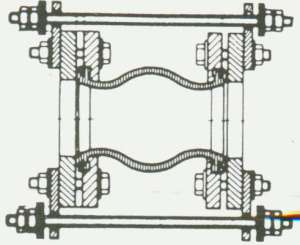

The shape of the bellows gives the expansion joint a higher flexibility and allows larger movements.
For all sizes the overall length is 130 mm.

The maximum allowable pressure must be adjust by one of the factors below at operating temperatures over 80°C.

85°C 90°C 95°C 100°C 105°C
0,92 0,83 0,75 0,67 0,60


      * up to 80°C

Burst pressure:


Temperature:

  60 barg (1¼" - 8")
  40 barg (10" - 12")

  -10C° to 105C°

rubber expansionrubber expansionrubber expansionrubber expansionrubber expansionrubber expansion

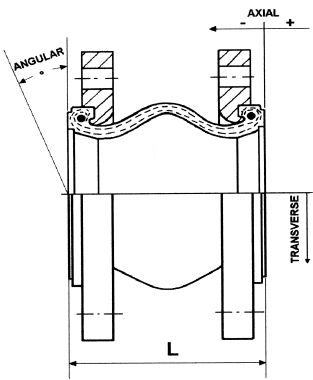

　Allowable Movements
  1.Axial Compression    2.Axial Elongation   3.Transverse Movement    4.Angular Deflection
rubber expansion rubber expansion rubber expansion rubber expansion

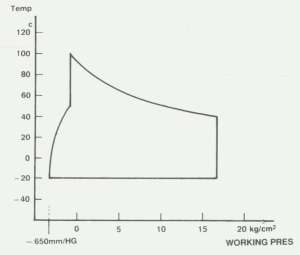

　Operation Condition
rubber expansion   •Operating Pressure
•Burst Pressure
•Vacuum Rating
•Temperature

(1"~12")
16 kg/cm²
60 kg/cm²
650 mm/Hg

(14"~28")
8 kg/cm²
24 kg/cm²

 rubber expansion

Dimension (mm)

Item Size
(In)		 L DØ FØ Allowable Movements
Axial Trans
Move		 Angular
Deflection
Comp Elong
AMS-101 1" 95 25 50 8mm 4mm 8mm 15°
AMS-101Q 1-1/4" 95 40 69 8 4 8 15°
AMS-101H 1-1/2" 95 40 60 8 5 8 15°
AMS-102 2" 105 52 86 12 6 8 15°
AMS-102H 2-1/2" 115 68 106 12 6 10 15°
AMS-103 3" 130 76 116 18 10 10 15°
AMS-104 4" 135 103 150 18 10 12 15°
AMS-105 5" 170 128 180 18 10 12 15°
AMS-106 6" 180 152 209 25 14 12 15°
AMS-108 8" 205 194 260 25 14 22 15°
AMS-110 10" 240 250 320 25 14 22 15°
AMS-112 12" 260 300 367 25 16 22 15°
AMS-114 14" 265 320 408 25 16 22 15°
AMS-116 16" 265 372 472 25 16 22 15°
AMS-118 18" 265 415 522 25 16 22 15°
AMS-120 20" 265 454 570 25 16 22 15°
AMS-124 24" 254 580 690 19 13 19 15°
AMS-128 28" 254 680 800 19 13 19 15°
Item Size
(In)		 L DØ FØ Allowable Movements
Axial Trans
Move		 Angular
Deflection
Comp Elong
AMS-201 1" 6" 25 50 1/2" 3/8" 1/2" 15°
AMS-201Q 1-1/4" 6" 40 69 1/2" 3/8" 1/2" 15°
AMS-201H 1-1/2" 6" 40 60 1/2" 3/8" 1/2" 15°
AMS-202 2" 6" 52 86 1/2" 3/8" 1/2" 15°
AMS-202H 2-1/2" 6" 68 106 1/2" 3/8" 1/2" 15°
AMS-203 3" 6" 76 116 1/2" 3/8" 1/2" 15°
AMS-204 4" 6" 103 150 5/8" 3/8" 1/2" 15°
AMS-205 5" 6" 128 180 5/8" 3/8" 1/2" 15°
AMS-206 6" 6" 152 209 5/8" 3/8" 1/2" 15°
AMS-208 8" 6" 194 260 5/8" 3/8" 1/2" 15°
AMS-210 10" 8" 250 320 5/8" 1/2" 3/4" 15°
AMS-212 12" 8" 300 367 3/4" 1/2" 3/4" 15°
AMS-214 14" 8" 320 408 3/4" 1/2" 3/4" 15°
AMS-216 16" 8" 372 472 3/4" 1/2" 3/4" 15°
AMS-218 18" 8" 415 522 3/4" 1/2" 3/4" 15°
AMS-220 20" 8" 454 570 3/4" 1/2" 3/4" 15°
AMS-224 24" 10" 580 690 3/4" 1/2" 3/4" 15°
AMS-228 28" 10" 680 800 3/4" 1/2" 3/4" 15°

Item Size
(In)		 L DØ FØ Allowable Movements
Axial Trans
Move		 Angular
Deflection
Comp Elong
AMS-301 1" 130 25 50 12 9 12 15°
AMS-301Q 1-1/4" 130 40 69 12 9 12 15°
AMS-301H 1-1/2" 130 40 60 12 9 12 15°
AMS-302 2" 130 52 86 12 9 12 15°
AMS-302H 2-1/2" 130 68 106 12 9 12 15°
AMS-303 3" 130 76 116 12 9 12 15°
AMS-304 4" 130 103 150 14 9 14 15°
AMS-305 5" 130 128 180 14 9 14 15°
AMS-306 6" 130 152 209 14 9 14 15°
AMS-308 8" 130 194 260 14 9 14 15°
AMS-310 10" 130 250 320 14 9 14 15°
AMS-312 12" 130 300 367 16 9 16 15°
