PTFE Pall ring

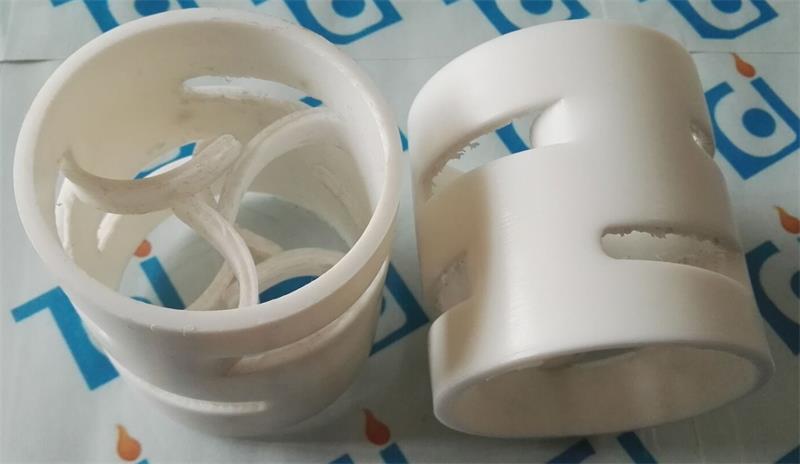

PTFE PALL RING 76MM

Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene that has numerous applications. T.C.I PTFE Polytetrafluoroethylene Pall ring (100% pure PTFE) is a kind of special plastic random packing designed to serve special working environment and applications. PTFE has very stable chemical performance, and hardly makes reaction with any acid and alkali. PTFE Pall ring & Raschig ring can be used stably in the temperature of -200 to +250 centigrade thermometer.

Features:

1. Low pressure drop, large void space, large flux, high mass-transfer efficiency, low energy consumption etc.

2. Excellent distribution in tower packing.

3. Operational temperature range: Up to +160°c

4. Application: suitable for all kinds of separation, absorption, desorption device, atmospheric and vacuum distillation unit, ammonia removal, desulfurization system, ethylbenzene separation, isooctane, toluene separation.

Main specifications for PTFE Pall Ring:

Size(mm)

Bulk Density

(kg/m3)

Bulk Number

(PCS/m3)

Specific Surface

(m2/m3)

Void volume(%)

Φ20×2×20

550

125000

267

92.8

Φ25×2×25

450

60000

219

93.4

Φ29×2×29

400

35000

193

93.6

Φ38×2.5×38

370

15800

148

94

Φ40×2×40

350

15100

138

94.2

Φ42×3×42

550

14500

132

94.3

Φ50×2×50

250

6800

108

94.5

Φ50×3×50

350

6800

108

94.5

Φ50×4×50

450

6800

108

94.5

Φ50×5×50
