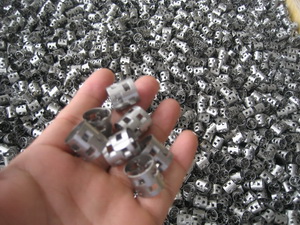

SS304 pall ring, SS316 pall ring, SS410 pall ring
.jpg) .jpg)
Metal Pall Ring (SS304, SS316, SS410 etc) Packing is widely used in all kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ，separation of ethylbenzene, separation of isooctane/ methylbenzene, Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2 Absorption & Stripping, Steam Stripping, Quench towers, Direct contact cooling.
| Absorption |
Aeration |
Degassing |
Desorption |
| Distillation |
Stripping |
Heat Recovery |
Extraction |
Material:
Metal Pall rings are available in a wide range of materials,such as stainless steel,carbon steel,304,304L,410,316,316L,aluminum,bronze,and other alloy.
Tech data of Metal Pall Ring Packing:
Specifications
(mm) |
D*H*δ
(mm) |
Bulk number
(n/m³) |
Specific surface area
(m²/m³) |
Bulk density
(m²/m³) |
Void volume
(m³/m³) |
Dry packing factor
(m-1) |
| Dg16 |
16*16*0.5 |
143000 |
239 |
216 |
0.928 |
299 |
| Dg25 |
25*25*0.5 |
55900 |
219 |
414.2 |
0.934 |
269 |
| Dg38 |
38*38*0.7 |
13000 |
129 |
312 |
0.945 |
153 |
| Dg50 |
50*50*0.8 |
6500 |
112.3 |
312.0 |
0.949 |
131 |
| Dg76 |
76*76*1 |
1870 |
68 |
216 |
0.96 |
2 |
*Note: All of the following bulk density refer to stainless steel(AISI304) in the material thickness shown.Other wall thickness are available on request.
RING, NO MODIFIER
TYPE : PALL
MATERIAL : 304 SS
APPLICATION : H2S STRIPPERS
FOR H2S STRIPPER V-68-11
AS PER FOLLOWING TECHNICAL SPECIFICATION
TYPE : PALL RING
MATERIAL : STAINLESS STEEL , SS-304
NOMINAL SIZE : 1 INCH
WALL THICKNESS : 0.6 MM
BULK DENSITY : 30 LBS/CUFT
SURFACE AREA : 65 SQ FT/CU FT
NOTE : TO BE PACKED IN STEEL DRUMS.
|
