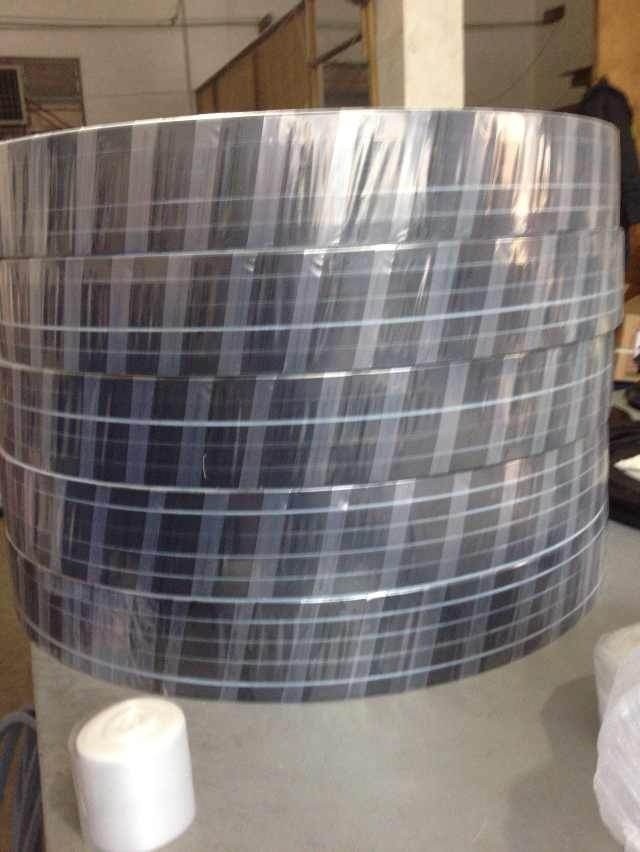

SUPER TANKTYT LID SEAL
SUPER TANKTYT LID SEAL
Super Tanktyt lid seal combines the resilience and compression set resistance of EPDM rubber with the outstanding chemical resistance of PTFE.
The seal’s rectangular elastomeric core is enveloped on three sides: top and bottom sealing faces and the inside diameter) with 100% virgin PTFE.
Prime features
Excellent chemical resistance.
Withstands repeated opening/closing cycles without loss of sealing integrity.
Chemical properties
The PTFE envelope makes the sealing faces and inside diameter chemically inert to media in the range pH 0-14 including all bulk liquid cargoes in all IMO classes.
The virgin PTFE is non-absorbent, non-tainting, and hygienic for use with foodstuffs and edible oils.
Service capabilities
Tank maximum pressure: 4bar Maximum temperature: +110°C Minimum temperature: -25°C
Sunpass Standard Size:
|
SUNPASS CODE
|
TYPE
|
SIZE
|
|
EP00001
|
DN500
|
(14MM *12MM) SECTION*484MM INNER DIA.
|
|
EP00002
|
DN500
|
(14MM *14MM) SECTION*484MM INNER DIA.
|
|
EP00003
|
DN300
|
(14MM *10MM) SECTION*294MM INNER DIA.
|
|
