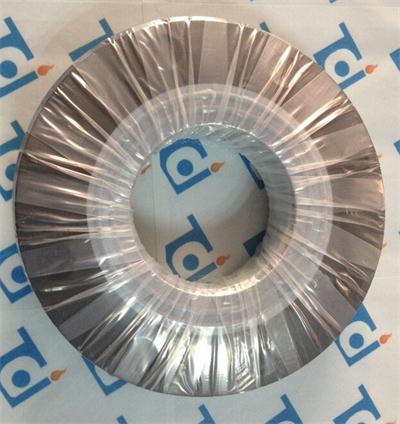

Low Stress EPDM Full Face gaskets with PTFE Envelopes BS4504 PN10

T.C.I® Low Stress EPDM Full Face gaskets with PTFE Envelopes is
equal to Stress Saver Style 370.
Composition: 100% Pure PTFE bonded to EPDM
Color: WHITE PTFE,  BLACK EPDM
Temperature:-40Deg C. to +150Deg. C
Pressure Psig (Bar):250 (17)
Media:Moderate acides, Caustics, gases, water, hydrocarbons.

BS4504 PN10 FULL FACE GASKETS dimensions

DN	ID	OD	NO.OF HOLES	HOLE DIA.	B.C.D	THK
10	18	90	4	14	60	3
15	22	95	4	14	65	3
20	27	105	4	14	75	3
25	34	115	4	14	85	3
32	43	140	4	18	100	3
40	49	150	4	18	110	3
50	61	165	4	18	125	3
65	77	185	8	18	145	3
80	89	200	8	18	160	3
100	115	220	8	18	180	3
125	141	250	8	18	210	3
150	169	300	8	22	240	3
200	220	340	8	22	295	3
250	273	395	12	22	350	3
300	324	445	12	22	400	3
350	356	505	16	22	460	3
400	407	565	16	26	515	3
450	458	615	20	26	565	3
500	508	670	20	26	620	3
