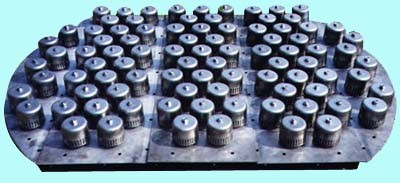

Bubble Cap Tray

Bubble-Cap trays have numerous applications in refinery and gas plants, due to their effectiveness over a broad range of flow conditions and low susceptibility to fouling. T.C.I provides both standard and custom designs.  We can supply not only standard materials such as 410, 304, and 316 Stainless steels, but also provide special materials such as Monel, Alloy 20, and Hastelloy in a variety of cap styles.

Bubble Cap Tray

Other trays:
Sieve Tray
is a perforated tray with typically 8% to 15% open area, normally using 12.7mm-diameter holes.

Chimney Tray
has risers and hats for vapor flow while collecting liquid for drawoff.

Bubble Cap Tray
has risers and fixed caps through which vapor flows and contacts the liquid on the tray.

Post-supported Tray
T.C.I is used in small diameter towers typically less than 760 mm where trays are assembled one at a time over posts, or in cartridge bundles.

Shed Rows
are contacting devices for very heavily fouling service such as coker or cat unit slurry zones.
Caged Valve Trays
T.C.I specializes in the manufacturing of all types of Reactor Trays. Regardless of the OEM, we can manufacture most kinds of trays in any type of metallurgy from Carbon Steel to Hastelloy B-3, without sacrificing reliability or quality. Along with our wide variety of tray replacement options,
Round Valves Trays
we also offer fast and reliable emergency tray replacement through our centrally located Dallas plant. Even if your replacement needs only call for a manway panel or downcomer piece
Rectangular Valve Trays
you can be certain that T.C.I will be there to get the job done. So when you need it now, we will provide you with the service and quality you expect.
