Plastic Tellerette ring, PP, PVC, CPVC, PE, Nylon 66

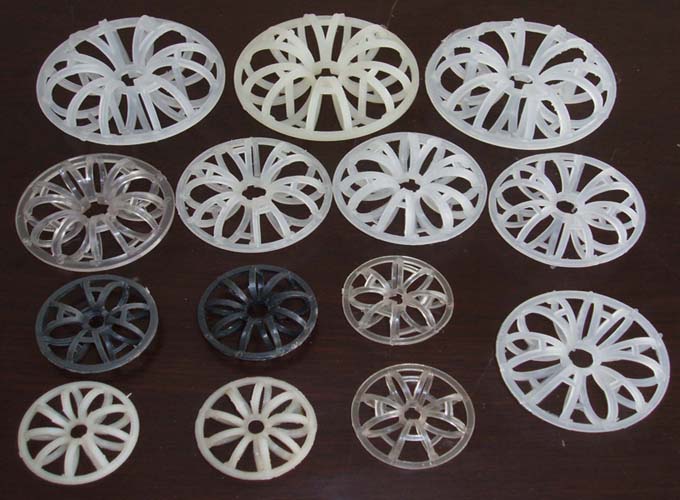

Ningbo T.C.I Co., ltd, Plastic Tellerette Ring is also named Teller Ring which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics. Material can be:

Advantages: Lower pressure, energy, mass transfer efficiency

Customers can choose products of different materials such as:
polyethlene (PE Tellerette ring),
polypropylene (PP Tellerette ring),
reinforced polypropylene (RPP Tellerette ring),
polyvinyl chloride (PVC Tellerette ring),
chlorinated polyvinyl chloride (CPVC Tellerette ring)
polyvinylidene fluoride(PVDF Tellerette ring)
Nylon 66 (PA Tellerette ring)
based on different application requirements.

Application: Absorption, scrubbing, and stripping services etc.

Technical Parameter:

Name	Normal mm	DiameterHeight Thickness mm	Surface area m2/m3	Void space %	Bulk density kg/m3	No.elements per/m3	Packing factor m-1
Tellerette ring	ø25	2591.5*2	269	82	128	175000	488
	ø47	47193*3	185	88	111	32500	271
	ø51	51193*3	180	89	103	25000	255
	ø59	59193*3	150	92	102	17500	213
	ø73	73283*4	127	89	102	8000	180
	ø95	95373*6	94	90	88	3600	129
	ø145	145483*6	65	95	47	1100	76

The bulk density given here is based on PP material.
