Polypropylene Tellerette 2K,Tellerette 2k,Tellerette 2R Tower Packing maintains good liquid distribution through packing depths in excess of 10 metres. Good initial liquid distribution is essential. Spray headers using full cone spray nozzles are recommended. Weir distributors are not recommended.B. Design of the packing supports is important.
we can make Tellerette 2K in Polypropylene, PVDF, PVC etc.
Specifications for Tellerettes.
| MODEL |
Outer Diameter (mm) |
Height |
surface area (m2/m3) |
Void volume 3/m3 |
Dry packing factor ( m-1 ) |
| O |
25 |
9 |
269 |
82 |
488 |
| s-o |
47 |
19 |
185 |
88 |
271 |
| S |
51 |
19 |
180 |
89 |
255 |
| M |
73 |
28 |
127 |
89 |
180 |
| L |
95 |
37 |
94 |
90 |
129 |
| LL |
145 |
48 |
65 |
95 |
76 |
| 2K |
83.00 |
32 |
98 |
92 |
16 |
| 3K |
105.00 |
56 |
72 |
96 |
9 |

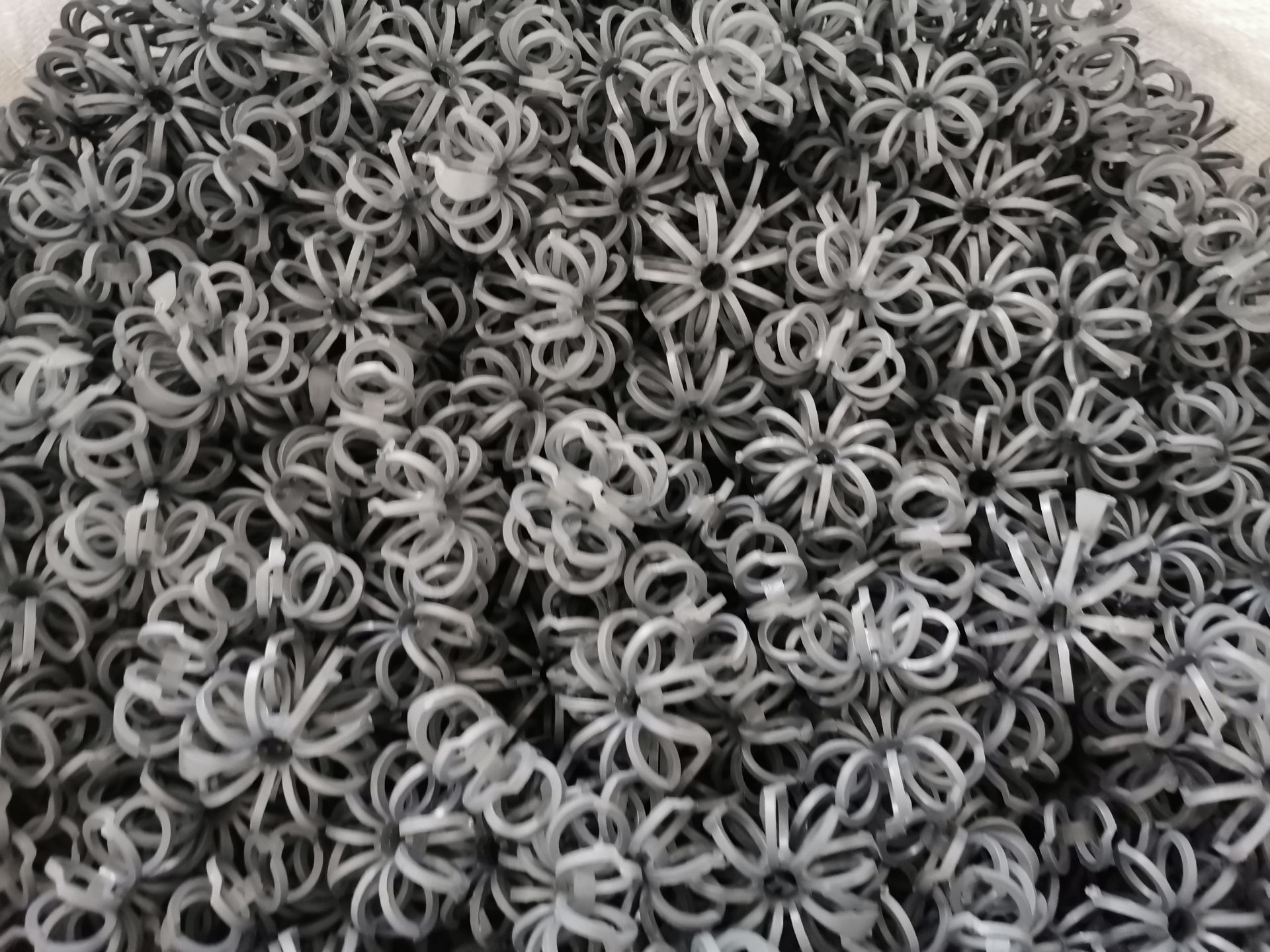

Tellerette tower packing is a type of inert packing with the appearance of a circular-wound spiral, used to create a large surface area to increase contact between falling liquid and rising vapor; used in gas-absorption operations
Tellerette 2K || Tellerette 2R ||
|
