Tri-Packs®
tri pack
Tri-Packs® is a sphere-shaped column packing with intricate group of ribs and struts. It was introduced in 1980's and is since recognized by its geometrical shape. Its spherical shape offers good surface area to void space ratio. There is virtually no nesting or settling since there are no obtruding edges. Due to circular and consistent design of each packing, high mass transfer rates are achieved.
Tri-packs tower packing provides maximum surface contract between the gas and the scrubbing liquid by facilitation continuous formation of droplets throughout the packed bed. This Result in high scrubbing efficiency, and minimium total packing depth required.

Application: Tri-packs is used Absorbers, Degassing, Liquid/Liquid extraction, Water Treatment, Heat Transfer

:Packing: Tri-packs will be packed with 25kgs/50kgs compound plastic bag, enhanced plastic super sack or carton. other packing is available upon on your request.

Materials: PP, PE, PVC, CPVC, PVDF (Kynar®), PFA (Teflon®)
Please see the data sheet for Tri-packs in the following:

Nominal Size (in)
1
2
31/2
Void Fraction (%)
90
93.5
95
Geometric Surface Area (ft2/ft3)
85
48
38
Weight – (lb/ft3)
6.2
4.2
3.3
Packing Factor (1/ft)
28
16
12

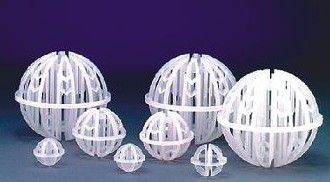

Picture of Tri-packs
