York 931, 422, 431, 326, 421, 333, 371 mist eliminator
.png)

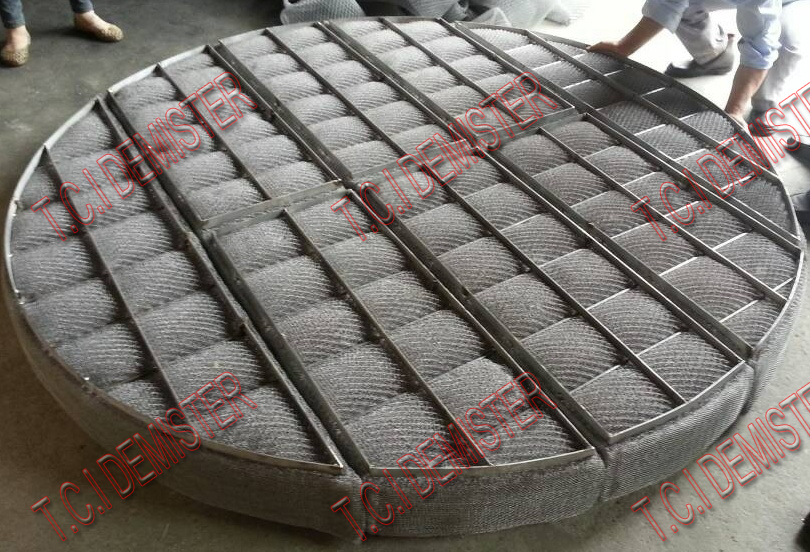

York 931, 422, 431, 326, 421, 333, 371 mist eliminator Demister Used in case of low-pressure loss is required, or when blocking-up may occur
|
|
|
|
|
|
Style and Feature
|
|
Style
|
Density kg/m3
|
FreeVolume %
|
SurfaceArea m2/m3
|
T.C.I
|
Equivalent To:
|
|
York
|
Knitmesh
|
Vico-Tex
|
Koch
|
Metex
|
|
H
|
80
|
99.0
|
158
|
D80
|
931
|
4536
|
160
|
511
|
Hi-Thruput
|
|
L
|
120
|
98.5
|
210
|
D120
|
422
|
|
|
|
|
|
N
|
144
|
98.2
|
280
|
D144
|
431
|
9030
|
280
|
911
|
Nu-Stanadrd
|
|
SN
|
128
|
98.4
|
460
|
D128
|
326
|
|
415
|
706
|
|
|
SL
|
193
|
97.5
|
375
|
D193
|
421
|
9033
|
380
|
1211
|
Xtra-Dense
|
|
SM
|
300
|
96.2
|
575
|
D300
|
|
|
|
|
|
|
SH
|
390
|
95.0
|
750
|
D390
|
|
|
|
|
|
|
T
|
220
|
97.2
|
905
|
D220
|
|
|
|
|
|
|
R
|
432
|
94.5
|
1780
|
D432
|
333
|
|
800
|
|
Multi-Strand
|
|
W
|
220
|
97.2
|
428
|
D220
|
|
|
|
|
Wound
|
|
GS
|
160
|
96.7
|
5000
|
D160
|
371
|
|
|
|
|
Note:wemainlymakemisteliminatorinmaterials:SS304,SS316,SS304L,SS316L,Monel400,and plastic suchas PP,PVDF,PTFEetc.
| STYLE |
FEATURES |
| H-Style |
Can permit highest vapour velocities for mist load than any other styles. Used in case of low-pressure loss is required, or when blocking-up may occur, or when the removal of larger mist or high efficiency is not required. Usually used 150 m/m thickness. As for the efficiency equivalent to SL-Style, used in 200 m/m thickness |
| N-Style |
For all round use. It has 95-99% efficiency against 8μ mist at 1-5 m/sec velocity. |
| SL-Style |
Used when high efficiency is required. Though pressure loss is increased slightly, it is considered to have 95-98% efficiency against 3μ mist at 1-6 m/sec velocity. This S-Style is especially needed when approximately 90% efficiency at 1 m/sec velocity is required. |
| T-Style |
Used when removing of approximately 2μ-3μ mist. Especially when the entrainment is 1.0 gr/m³ or less; 200 m/m to 300 m/m thickness is used. |
| R-Style |
Used for removing of every minute mist of approximately 1μ. The most efficient type for its thickness. |
|
