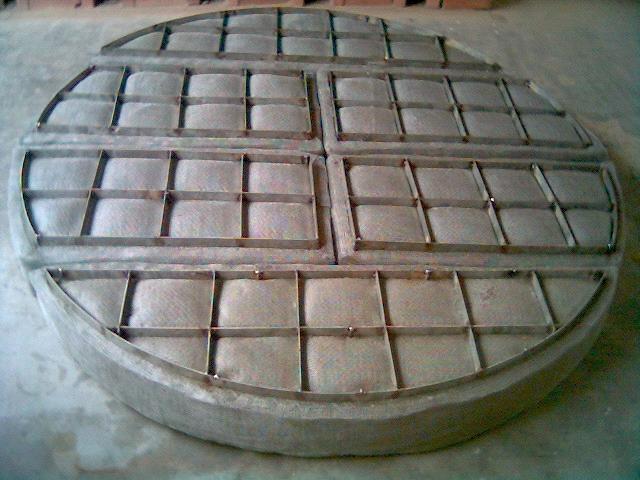

Knitted wire mesh demister

Knitted wire mesh demister



Knitted wire mesh demister(or mist eliminator)is mainly used to separate drops of the diameter between 3μm to 5μm, the operating principle is showed in the fig at the right side. When the gas with liquid drops rises at a certain speed, passing through the wire mesh on the grid bar, the inertia of the rising drops make them collide with the wire and then adhere to the surface of the wire. The drops on the wire will diffuse and subside. It makes the drops form bigger ones and then flow along the wire to the intertexture of the wire. Because the wire can be humidified, and because of the surface tension of liquid and the capillarity effect of the wire, the drops will become bigger and bigger. They will be separated and fall when their own weight exceed the resultant force of buoyancy of the rising gas and surface tension of liquid. They will flow to the device of the container in the backward position. As long as the speed of the gas is properly controlled and with other proper condition, the efficiency of foam remove will be as high as 97% after the gas pass through wire-mesh demister. The purpose of removing foam will be achieved completely.

Material of our made Knitted wire mesh demister





Q235-A Q235-A
Steel 20 Steel 20
0Cr18Ni9 SS304
00Cr19Ni11 SS304L
0Cr17Ni12Mo2 SS316
0Cr17Ni14Mo2 SS316L
0Cr19Ni10Ti SS321
0Cr19Ni13Mo3 SS317
0Cr25Ni20 SS310
1Cr25Ni20Si2 SS310S
00Cr20Ni25Mo4.5Cu (N08904) SS904L
0Cr23Ni13 SS309S
Brass Brass wire
Bronze Bronze wire
Nickel Nickel wire
Titanium Titanium wire
PVC PVC
PE PE
Polypropylene PP
Teflon PTFE
FEP FEP
PFA PFA
ETFE ETFE
PVDF PVDF
Hastelloy alloy Hastelloy alloy
Inconel Inconel
Monel Monel
Stainless steel wire with Fiber glass Stainless steel wire with Fiber glass
Stainless steel wire with PP Stainless steel wire with PP
Stainless steel wire with PTFE Stainless steel wire with PTFE
Stainless steel wire with PVDF Stainless steel wire with PVDF










Style and Feature
Style
Density kg/m3
FreeVolume %
SurfaceArea m2/m3
T.C.I
Equivalent To:
York
Knitmesh
Vico-Tex
Koch
Metex
H
80
99.0
158
D80
931
4536
160
511
Hi-Thruput
L
120
98.5
210
D120
422




N
144
98.2
280
D144
431
9030
280
911
Nu-Stanadrd
SN
128
98.4
460
D128
326

415
706

SL
193
97.5
375
D193
421
9033
380
1211
Xtra-Dense
SM
300
96.2
575
D300





SH
390
95.0
750
D390





T
220
97.2
905
D220





R
432
94.5
1780
D432
333

800

Multi-Strand
W
220
