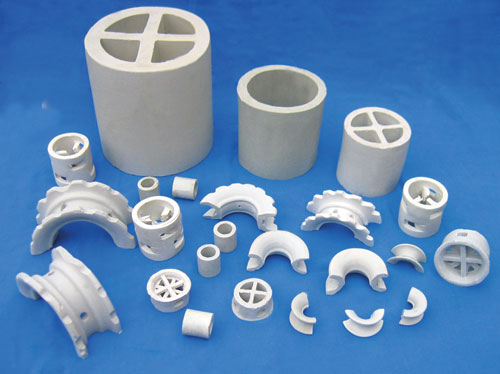

Random Packings Of Ceramic
The ceramic random packings have excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the dry towers, absorbing towers, cooling towers, scrubbing towers and actifier towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
1.Chemical composition of ceramic random packings:
|
Composition
|
SiO2
|
Al2O3
|
Fe2O3
|
CaO
|
MgO
|
K2O
|
Na2O
|
TiO2
|
Burning lost
|
|
Content (%)
|
≥65
|
6-12
|
≤2.0
|
≤2.5
|
≤2.1
|
≤1.8
|
≤0.1
|
≤0.33
|
≤0.48
|
2.Physical properties of ceramic random packings:
|
Item
|
Specific gravity
|
Acid resistance
|
Alkaline resistance
|
Compressive strength
|
Bend strength
|
Water absorption
|
Hardness
|
hot stability
|
|
Unit
|
T/m3
|
%
|
%
|
kg/cm2
|
kg/cm2
|
%
|
Mohs
|
200°C-15°C
|
|
Index
|
2.20
|
99.80
|
96
|
4800
|
700
|
< 1
|
7
|
Do not split three times
|
3.Technical data of ceramic random packings:
|
Name
|
Specification (mm)
|
Dimension d×h×δ(mm)
|
Specific
surface
area (m2/m3)
|
Void
rate (%)
|
Heaping number (n/m3)
|
Heaping weight (kg/m3)
|
Dry packing factor (M-1)
|
|
Rasching ring
|
ф25
|
25×25×2.5
|
235
|
0.78
|
49000
|
560
|
784
|
|
ф40
|
40×40×5
|
178
|
0.75
|
12700
|
550
|
400
|
|
ф50
|
50×50×5
|
136
|
0.81
|
6800
|
530
|
305
|
|
ф80
|
80×80×9.5
|
108
|
0.68
|
1930
|
714
|
177
|
|
ф100
|
100×100×10
|
90
|
0.70
|
1000
|
700
|
234
|
|
ф150
|
150×150×15
|
75
|
0.68
|
295
|
790
|
172
|
|
Saddle ring
|
ф25
|
25×20×3
|
200
|
0.77
|
58230
|
560
|
434
|
|
ф38
|
38×30×4
|
138
|
0.80
|
19680
|
540
|
252
|
|
ф50
|
50×42×6
|
115
|
0.79
|
8246
|
510
|
213
|
|
ф76
|
76×53×9
|
86
|
0.75
|
2400
|
537
|
179
|
|
Super Saddle ring
|
ф25
|
25×20×3
|
216
|
0.78
|
58300
|
530
|
340
|
|
ф38
|
38×30×4
|
157
|
0.84
|
19700
|
510
|
190
|
|
ф50
|
50×42×6
|
132
|
0.81
|
8260
|
490
|
166
|
|
ф76
|
76×53×9
|
108
|
0.77
|
2430
|
520
|
127
|
|
Ladder ring
|
ф25
|
25×17.5×3
|
250
|
0.74
|
66960
|
530
|
245
|
|
ф38
|
38×28×4
|
175
|
0.73
|
17540
|
650
|
154
|
|
ф50
|
50×30×5
|
149
|
0.72
|
8980
|
580
|
120
|
|
ф60
|
60×35×5
|
149
|
0.72
|
7676
|
590
|
115
|
|
ф76
|
76×45×7
|
60
|
0.69
|
2400
|
580
|
105
|
|
Pall ring
|
ф25
|
25×25×3
|
238
|
0.73
|
49000
|
520
|
565
|
|
ф38
|
38×38×4
|
197
|
0.75
|
13400
|
570
|
365
|
|
ф50
|
50×50×5
|
154
|
0.78
|
6800
|
550
|
252
|
|
ф80
|
80×80×8
|
116
|
0.80
|
1930
|
520
|
146
|
|
Conjugate ring
|
ф25
|
25×25×3
|
284
|
0.78
|
58030
|
580
|
350
|
|
ф38
|
38×38×4
|
172
|
0.80
|
13950
|
540
|
230
|
|
ф50
|
50×50×5
|
149
|
0.80
|
8900
|
490
|
140
|
|
Cross ring
|
ф80
|
80×80×8
|
120
|
0.56
|
1910
|
820
|
683
|
|
ф100
|
100×100×10
|
110
|
0.53
|
1000
|
850
|
739
|
|
ф150
|
150×100×15
|
60
|
0.58
|
287
|
890
|
308
|
|
Washing ring
|
ф80
|
80×80×8
|
132
|
0.75
|
225
|
540
|
|
|
ф100
|
100×100×10
|
254
|
0.71
|
195
|
480
|
|
|
