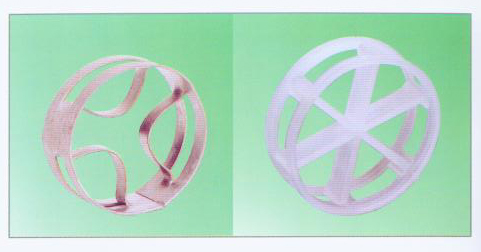

QH-1 Super Mini Ring

Super Mini Ring

Features:

Low pressure loss, high efficiency, high elastic load, long service life.

Materials:

stainless steel, carbon steel, aluminum , Plastic , PP, PVC, CPVC, PVDF, PTFE etc

Spec.

Model NO. Spec. D×H×δ
mm
Specific surface α
m2/m3
Void ratio ε
%
Piling NO. n
m-3
Dry filler factor F
m1
Dg25 25×9 160 88 177000 287
Dg38 38×12.7 140 90 54530 175
Dg50 50×17 120 92 17390 140
Dg75 75×23 100 94 7730 112
