ceramic intalox saddles
.jpg)

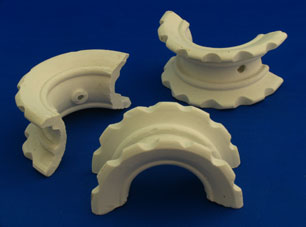

Ceramic Super Intalox saddles (or Ceramic super saddles for short, similar to Koch INTALOX) are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes. Ceramic super saddles' smooth surface imparts a high chemical resistance and provides them with a high level of stability. Due to their simple form, AceChemPack Ceramic Super Intalox saddles can be produced at a relatively low cost.
Applications:
Ceramic Super Intalox saddles ( similar to Koch-Glitsch INTALOX) are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers
Chemical composition
| SiO2 |
Al2O3 |
Fe2O3 |
CaO |
MgO |
K2O+N2O |
Other |
| >73% |
17-23% |
<1.0% |
<0.5% |
<0.5% |
2-4% |
><0.1% |
Ceramics Saddle applied to RTO
Ceramic Saddles for RTO application.
Geometric Properties of RTO saddles
|
Nominal Size
|
Approx.weight
|
Surface area
|
Void fraction (%)
|
Packing factor(1/ft)
|
|
Lb/cu.ft
|
Kg/m3
|
Ft2/ft3
|
M2/m3
|
|
1/2”
|
45
|
720
|
190
|
623
|
71.7
|
200
|
|
3/4”
|
43
|
688
|
102
|
334
|
73
|
130
|
|
1”
|
43
|
688
|
77
|
253
|
73
|
85
|
|
1.5”
|
40
|
640
|
50
|
164
|
75
|
50
|
|
2”
|
36
|
577
|
35
|
115
|
77.4
|
37
|
|
3”
|
39
|
623
|
28
|
92
|
75.5
|
24
|
Physical properties
|
Index
|
Value
|
|
Specific gravity,g/cm3
|
2.25-2.35 |
|
Water absorption,%
|
<0.5 |
|
Acid-resisting strength, %Wt.Loss(ASTMc279)
|
<4 |
|
Firing temperature, ℃
|
1280-1320 |
|
Softening point, ℃
|
>1400 |
|
Density, lbs/cuft or kg/m3
|
145 or 2350 |
Chemical composition
| SiO2 |
Al2O3 |
Fe2O3 |
CaO |
K2O+N2O |
| >70% |
23-30% |
<1% |
1-2% |
2-4% |
|
