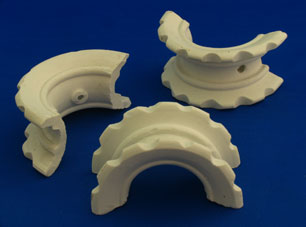

super intalox saddles
super intalox saddles is improved from the arc saddle, it changes the both arched surface to rectangular surface and makes the interior and exterior radius of curvature different, this construction overcomes the problem of nesting basically, and it makes porosity distributed even and improves the distribution of the fluid, and greater capacity and lower pressure drop than Raschig ring.
Ceramics Saddle applied to Petrochemical
|
Nominal Size(inch)
|
5/8”
|
3/4”
|
1”
|
1.5”
|
2”
|
3”
|
|
Width(mm)
|
12
|
14
|
21
|
30
|
40
|
57
|
|
Height(mm)
|
12
|
14
|
19
|
30
|
40
|
57
|
|
Length(mm)
|
24
|
28
|
38
|
60
|
80
|
114
|
|
Thickness(mm)
|
2.5
|
3
|
4
|
4.5
|
5.5
|
9
|
|
Number/m3
|
269000
|
146000
|
59000
|
19680
|
8243
|
2400
|
|
Bulk density(Kg/m3)
|
700
|
670
|
670
|
580
|
550
|
530
|
|
Free volume (%)
|
71
|
75
|
75
|
80
|
79
|
75
|
|
Surface area(m2/m3)
|
535
|
350
|
250
|
180
|
120
|
91
|
|
Specific gravity(g/cm3)
|
2.3
|
|
Water absorption (%)
|
<0.3
|
|
Acid resistance (%)
|
>99.6
|
|
Max operating temp(℃)
|
1100
|
|
Porosity (%)
|
<1
|
|
Moh’s hardness(scale)
|
>6.5
|
|
Thermal conductivity(w/m.k)
|
0.9-1.0
|
|
Specific heat (j/kg ℃)
|
850-900
|
|
