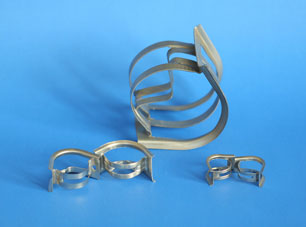

IMTP RING (INTALOX METAL TOWER PACKING)
TCI/images/upload/File/IMTP ring.pdf
IMTP RING (INTALOX METAL TOWER PACKING) is high performance random packing successfully used in mass transfer towers both small and large diameter. IMTP RING (INTALOX METAL TOWER PACKING) is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal Intalox Saddle Ring or metal saddle is available in various sizes, which give different combinations of efficiency and pressure drop.
Advantages of IMTP RING (INTALOX METAL TOWER PACKING) :
•low pressure drop and high efficiency
•large effective interfacial area
•high mechanical strength
•low cost
Application of IMTP RING (INTALOX METAL TOWER PACKING) :
• Transfer towers both small and large diameter
• Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
• Distillation, absorption etc
• High pressure towers
Technical Parameter of IMTP RING (INTALOX METAL TOWER PACKING) :
|
Name
|
Normal
mm
|
Diameter*Height*
Thickness mm
|
Surface area
m2/m3
|
Void space
%
|
Bulk density
kg/m3
|
No.elements
per/m3
|
Packing factor
m-1
|
|
(IMTP) Intalox saddles
|
ø25
|
25*20*0.6
|
185
|
96
|
409
|
101160
|
209
|
|
ø38
|
38*30*0.8
|
112
|
96
|
365
|
24680
|
137
|
|
ø50
|
50*40*1.0
|
75
|
96
|
291
|
10400
|
85
|
|
ø76
|
76*60*1.2
|
58
|
97
|
245
|
3320
|
63
|
|
