Intalox Metal Tower packing (IMTP ring)
TCI/images/upload/File/IMTP ring.pdf

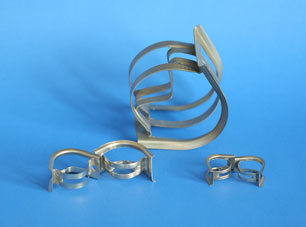

TCICO® Intalox IMTP #15,#25,#40,#50,#70,#76 is high performance random packing successfully used in mass transfer towers both small and large diameter. TCICO® IMTP RING (INTALOX METAL TOWER PACKING) is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal Intalox Saddle Ring or metal saddle is available in various sizes, which give different combinations of efficiency and pressure drop.
| Typical Kga Values for various packings (Gas Purification) |
| Packing |
Packing material |
|
| Metal |
Plastic |
Ceramic |
|
| #25IMTP |
3.42 |
|
|
|
| #50IMTP |
2.44 |
|
|
|
| #70IMTP |
1.74 |
|
|
|
| 1" Pall ring |
3.1 |
2.64 |
|
|
| 2" Pall ring |
2.18 |
2.09 |
|
|
| 3.5" pall ring |
1.28 |
1.23 |
|
|
| #1 Hy-pac packing |
2.89 |
|
|
|
| #2 Hy-pac packing |
2.06 |
|
|
|
| #3 Hy-pac packing |
1.45 |
|
|
|
| #1 Super intalox packing |
|
2.8 |
|
|
| #2 Super intalox packing |
|
1.92 |
|
|
| #3 Super intalox packing |
|
1.23 |
|
|
| 1" Intalox saddles |
|
|
2.82 |
|
| 2" Intalox saddles |
|
|
1.88 |
|
| 3" Intalox Saddles |
|
|
1.11 |
|
| 1" Raschig rings |
|
|
2.31 |
|
| 2" Raschig rings |
|
|
1.63 |
|
| 3" Raschig rings |
|
|
1.02 |
|
| Intalox snowflake packing |
|
2.37 |
|
|
| Sctructured packings |
|
|
|
|
| Intalox 1T |
4.52 |
|
|
|
| Intalox 2T |
3.8 |
|
|
|
| Intalox 3T |
2.76 |
|
|
|
| |
|
|
|
|
| Note. 1: conditions: inlet gas-3.5ft/s. 1mol%CO2 in air; |
| Feed liquid-10gpm/ft2 1 N NaOH, |
|
|
|
| 75°F; NaOH conversion less than 25%. |
|
|
| |
|
|
|
|
| Advantages of IMTP RING (INTALOX METAL TOWER PACKING) : |
|
|
|
|
| •low pressure drop and high efficiency |
|
|
|
|
| •large effective interfacial area |
|
|
|
|
| •high mechanical strength |
|
|
|
|
| •low cost |
|
|
|
|
Application of TCICO® IMTP RING (INTALOX METAL TOWER PACKING) :
• Transfer towers both small and large diameter
• Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
• Distillation, absorption etc
• High pressure towers
Technical Parameter of IMTP RING (INTALOX METAL TOWER PACKING) :
|
Name
|
Normal
mm
|
Diameter*Height*
Thickness mm
|
Surface area
m2/m3
|
Void space
%
|
Bulk density
kg/m3
|
No.elements
per/m3
|
Packing factor
m-1
|
|
(IMTP) Intalox saddles
|
ø25
|
25*20*0.6
|
185
|
96
|
409
|
101160
|
209
|
|
ø38
|
38*30*0.8
|
112
|
96
|
365
|
24680
|
137
|
|
ø50
|
50*40*1.0
|
75
|
96
|
291
|
10400
|
85
|
|
ø76
|
76*60*1.2
|
58
|
97
|
245
|
3320
|
63
|
|
