  您现在的位置是 : 产品列表 >>散堆填料--金属散堆填料

金属散堆填料


金属散堆填料










金属散堆填料是以碳钢,不锈钢,及铝合金等材料制成的塔填料。它主要包括金属鲍尔环、金属拉西环、矩鞍环、共轭环、八四内弧环等。

特点:
   壁薄、耐热、空隙率大、通量大、阻力小、分离效率高。

用途:
   用于石油化工,化肥、环保等行业的填料塔中。特别适用于真空精馏塔,处理热敏性,易分解、易聚合、易结碳的物料。

技术参数及规格:
产品名称
规格
mm
径*高*厚
mm
堆积个数
n/m3
比表面积
m2/m3
堆积重度
kg/m3
空隙率
m3/m3
干填料因子
m(-1)
鲍尔环
鲍尔环
Dg16
16*16*0.5
143000
239
216
0.928
299
Dg25
25*25*0.5
55900
219
414.2
0.934
269
Dg38
38*38*0.7
1300
129
312
0.945
153
Dg50
50*50*0.8
6500
112.3
312
0.949
131
Dg76
76*76*1
1870
68
216
0.96
2
阶梯环
阶梯环
Dg25
25*12.5*0.5
97160
220
383.5
0.93
273.5
Dg38
38*19*0.8
31890
154.3
465.6
0.94
185.8
Dg50
50*28*0.8
11600
109.2
323.9
0.95
127.4
Dg76
76*38*1
3760
73.5
214.5
0.97
81
共轭环
共轭环
Dg16
16*23*0.4
211250
313
340
0.96
354
Dg25
25*25*0.5
75001
185
311.7
0.95
216
Dg38
38*38*0.7
19500
116
269
0.96
131
Dg50
50*50*0.8
9772
86
268
0.96
97
八四内弧环
八四内弧环
Ф25
25*0.6
59200
250
420
0.93
310
Ф38
38*0.6
14000
138
296
0.947
163
Ф50
50*0.8
7000
121
350
0.95
144
Ф76
76*1.0
1950
75
280
0.95
86

双鞍环 环矩鞍

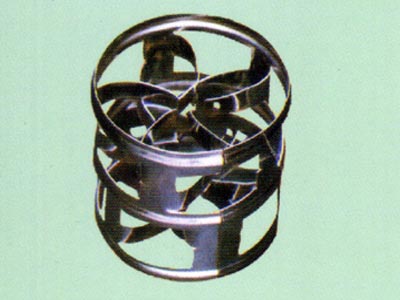

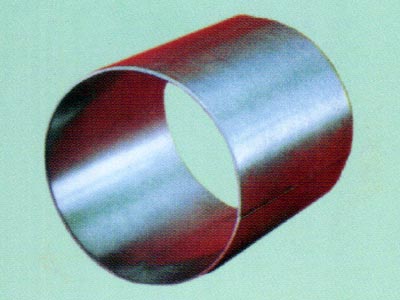

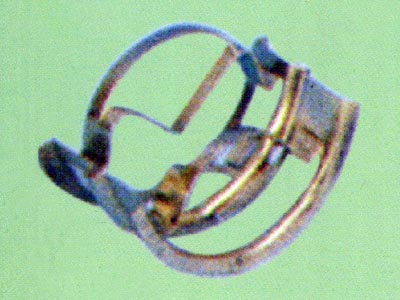

改型鲍尔环 拉西环 双鞍环 环矩鞍
拉特环 英特洛克斯环 鼓环 泰勒花环
拉特环 英特洛克斯环 鼓环 泰勒花环
