PTFE LINING cross
PTFE lining cross

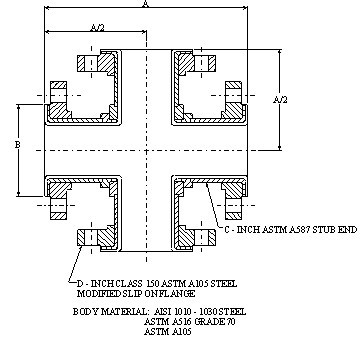

PTFE lining cross
PTFE Lined Crosses are produced with a free sintered liner and rotatable flanges.  Standard shapes are carbon steel with stainless steel available upon request.

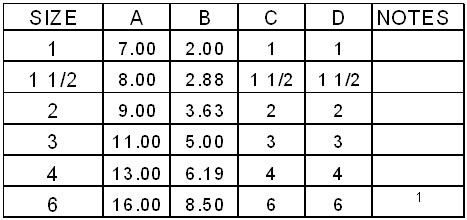

PTFE lining cross



Material SG Ultimate Tensile Strength Ultimate Elongation % Continuous temperature range Notes
PTFE 2.13 to 2.19 24.5 250-350 -30° to +200° Almost universal chemical resistance
PFA 2.12 to 2.17 28.5 300 -30° to +200° Almost universal chemical resistance
PVDF 1.75 to 1.78 40 50 0° to +140° Excellent chemical resistance
PP 0.92 26 17 (at yield) -20° to +95° Good chemical resistance
