PTFE LINING tee
PTFE lining tee

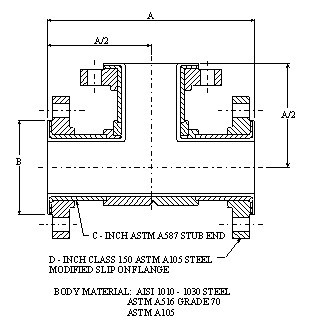

PTFE Lined Tees are produced with a free sintered liner and rotatable flanges.

Standard shapes are carbon steel with stainless steel available upon request.  300# Tees are also available.ptfe lining tee
Custom lengths are available on dimension A; amount of adjustment depends on size.

Size

A 150#

A 300#

B

C

D

1

7.00

8.00

2.00

1

1

1-1/2

8.00

9.00

2.88

1-1/2

1-1/2

2

9.00

10.00

3.63

2

2

2-1/2

10.00

11.00

4.13

2-1/2

2-1/2

3

11.00

12.00

5.00

3

3

4

13.00

14.00

6.19

4

4

6

16.00

17.00

8.50

6

6

8

18.00

20.00

10.50

8

8



Material SG Ultimate Tensile Strength Ultimate Elongation % Continuous temperature range Notes
PTFE 2.13 to 2.19 24.5 250-350 -30° to +200° Almost universal chemical resistance
PFA 2.12 to 2.17 28.5 300 -30° to +200° Almost universal chemical resistance
PVDF 1.75 to 1.78 40 50 0° to +140° Excellent chemical resistance
PP 0.92 26 17 (at yield) -20° to +95° Good chemical resistance
