Flexible joint
▶ Special Feature
Flexible joint that set up to pipe line is requested to operate character (flexible character , inside bending character) ,inside pressure character and inside chemical character. we product high qulity goods that is suitable to it.
▶ Structure

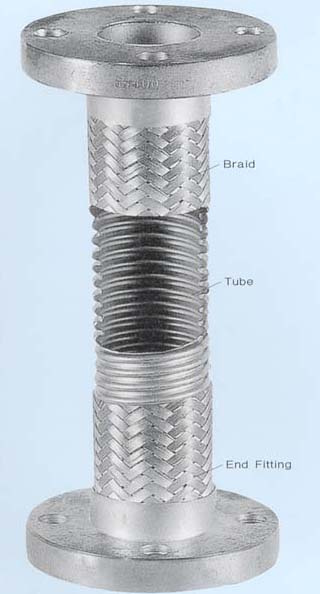

Structure of flexible joint is formed by tube( Stainless Tube), braid (Ribbon & Wire Braid), Connector (Flange, Union, Nipple, Socket, Coupling ETC)
• Tube ( Stainless Tube) |
We use stainless steel ( STS 304, 316,316L, 321,etc). This is product that can be endured high pressure by Spiral & Annular Type that increase inside bending character and inside flexible character. So this is used by connection pipe, water supply pipe line , vacuum pipe line, and air conditoning connocetion pipe line, etc.
Specially it is used to inside vacuum design. |
•Braid(Ribbon&Wire Braid)
|
| If materiality's pressure is occurred to inside tube, thid is able to protect bellows from outside impact. |
•End Fitting |
| This is able to make user's wanted product because of cennect material like Flange, Union, Nut, Etc to both end. |
|
|
This is excellent product in pipe line equipment of narrow space because of this structure absorb vacuum and endure high temperature and high pressure. Specially, This is excellent goods that consist of ΩType Bellows that have good flexible. |
|
• Maximum Use Temperature : 300 ℃
• Test Pressure : 15 kg/㎠
• FLANGE : KS, 10K, 20K
• Materality : air, water, steam, gas, oil |

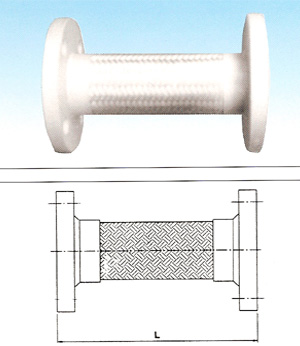

▶Parts And Name |
PARTS NAME |
QUALITY OF MATERIAL |
FLANGE |
SS4400 or STS304 |
BELLOWS |
STS304 |
BRAID |
STS304 |
고정빈도 |
STS304 |
|
|
|
|
NAME DIAMETER |
LENGTH(mm) |
BRAID TYPE |
MAXIMUM USE PRESSURE
(IF THIS IS HIG TEMPERATURE)kg/㎠ |
WEIGHT(kg) |
1FOLD Braid |
2FOLD Braid |
25A |
200 |
WIRE |
24 |
48 |
4 |
32A |
200 |
WIRE |
24 |
48 |
5 |
40A |
230 |
WIRE |
21 |
42 |
5 |
50A |
230 |
WIRE |
21 |
42 |
6 |
65A |
230 |
WIRE |
21 |
42 |
8 |
80A |
230 |
WIRE |
21 |
42 |
9 |
100A |
230 |
WIRE |
18 |
36 |
13 |
125A |
280 |
WIRE |
13 |
26 |
15 |
150A |
280 |
WIRE |
11.2 |
22.4 |
19 |
200A |
300 |
WIRE |
16.6 |
33.2 |
24 |
250A |
300 |
WIRE |
13.3 |
26.6 |
38 |
300A |
300 |
WIRE |
11.3 |
26.6 |
42 |
|
