  You are in : Products list >>Reducing Flanged Pump Connectors

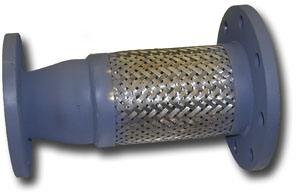

CRPCS Reducing Flanged Pump Connectors

Reducing Flanged Pump Connectors

Unisource CRPCS connectors are a material and labor saving device designed to provide vibration and noise isolation when connected between piping and vibrating equipment. These special connectors are intended to facilitate a reduction in pipe size when connecting to mechanical equipment. They are normally installed on the discharge side of HVAC pumps. Since CRPCS connectors incorporate a reduced size flange on one side, it eliminates having to install both a straight flex connector and a pipe reducer. CRPCS connectors utilize Superflex series 300 stainless steel hose and braid, carbon steel flanges, and carbon steel bell reducers. Longer length connectors are available on request to provide additional lateral deflection and increased vibration control efficiency.



Pressure Range   160 PSIG to 395 PSIG (Depending on size)
Sizes   2-1/2" x 2" through 12" x 10". Smaller and larger sizes available on special order
Braid   Series 300 stainless steel. Sizes 8" and larger are braided braid
End Fittings   Painted carbon steel 150# plate flanges. Other end configurations available
Concentric Reducer   Painted carbon steel, Sch. 40
Hose   Series 300 stainless steel annular corrugated hose
