  You are in : Products list >>Externally Pressurized Expansion Joints

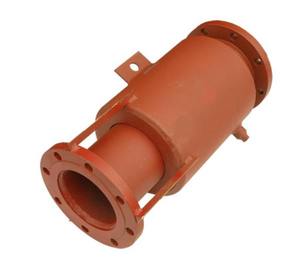

Series EP Dual 150# & 300# Styles
Externally Pressurized Expansion Joints

Series EP Externally Pressurized Expansion Joints are used in straight runs of pipe to accommodate large amounts of thermal expansion. The Series EP dual expansion joints utilize two sets of bellows with a center anchor base, effectively doubling the axial motion capability of a single expansion joint. Dual units are rated for either 8”, 12”, or 16” of axial travel. Anchor base is stanadard.

Select either 150 PSIG or 300 PSIG bellows construction. Single bellows styles are available for 4", 6", or 8" of axial travel. Flanges or weld end are additional options.



Pressure Range   150 PSIG to 300 PSIG
Sizes   1" through 36"
Anchor Base   Carbon steel intermediate anchor base
Axial Travel   8", 12", or 16"
Bellow Material   Single ply or multiply 304SS
Drain Port   Carbon steel with tapered plug
End Connections   Flanges – 150# or 300# ANSI B 16.5 RFSO C/S, ASTM 105 Forged. Weld Ends – Sch 40 C/S beveled
Lifting Lugs   Carbon steel. Used on all units
Pipe/Shell   Carbon steel Sch Standard
Expansion Joints for electricity photos
