  You are in : Products list >>UPCS stainless steel connectors

UPCS-MMT & UPSC-XL-MMT Threaded

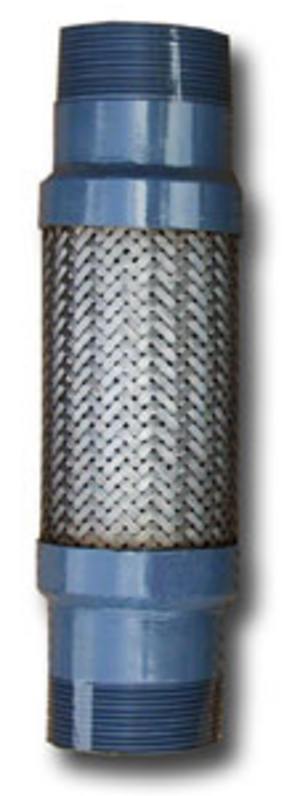

UPCS stainless steel connectors

Unisource Style UPCS stainless steel braided pump connectors are the standard of the industry for a rugged, versatile flex product to connect piping to vibrating mechanical equipment.

UPCS stainless steel connectors combine 300 series corrugated stainless steel hose and braid with weld-on carbon steel end fittings for a high-pressure assembly. Standard connectors with stainless steel end fittings are also available. Unisource starts with a high corr-count inner hose for greater flexibility and better noise and vibration control efficiency. Many manufacturers utilize a less expensive wide-pitch corrugated hose. A tightly woven stainless steel braid provides high pressure ratings, even in high temperature heating water applications. Style UPCS-MMT threaded are made to traditional industry standard overall lengths. These connectors are designed to provide good efficiency for noise and vibration control. Style UPCS-XL-MMT are longer length connectors, built for even greater noise and vibration control, and a minimum of 2” permanent lateral offset.



Pressure Range   250 PSIG to 990 PSIG (Depending on size)
Sizes   1/2" through 4". Smaller and larger sizes available on special order
Braid   300 Series stainless steel
End Fittings   Painted carbon steel MNPT are standard. Stainless steel ends available upon request
Hose   Series 300 stainless steel annular corrugated hose
Expansion Joints for electricity photos
