  You are in : Products list >>UPCS stainless steel connectors flanged

UPCS-FLG & UPCS-XL-FLG Flanged

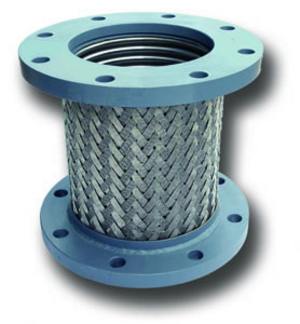

UPCS FLANGED CONNECTORS

UPCS-FLG & UPCS-XL-FLG stainless steel connectors combine 300 series corrugated stainless steel hose and braid with weld-on carbon steel flanges for a high-pressure assembly. Unisource starts with a high corr-count inner hose for greater flexibility and better noise and vibration control efficiency. Many manufacturers utilize a less expensive wide-pitch corrugated hose. A tightly woven stainless steel braid provides high pressure ratings, even in high temperature heating water applications. Style UPCS-FLG threaded are made to traditional industry standard overall lengths. These connectors are designed to provide good efficiency for noise and vibration control. Style UPCS-XL-FLG are longer length connectors, built for even greater noise and vibration control, and a minimum of 2” permanent lateral offset.



Pressure Range   150 PSIG to 455 PSIG (Depending on size)
Sizes   1-1/2" through 14". Smaller and larger sizes available on special order
Braid   Series 300 stainless steel. Sizes 8" and larger are braided braid
End Fittings   Painted carbon steel 150# plate flanges are standard. Stainless steel flanges available upon request
Hose   Series 300 stainless steel annular corrugated hose
