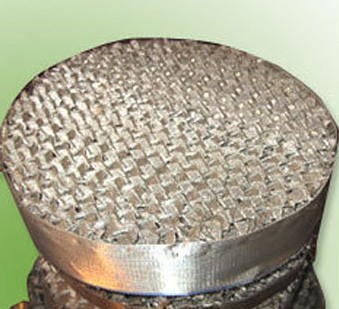

Wire Mesh Structured Packing

        Wire Mesh structured columns packing consist of proprietary designed metal wire mesh with corrugated sheets which are aligned and placed vertically. The wire structures slopes are reversed in other sheets stacked with alternating 90 degree orientation of each layer resulting in inclined flow passages and a relatively high surface area. This allow thin liquid films to be continuously spread across the tower as liquid flows through the packing. Capillary action and high surface areas result in maximum exposure to high mass transfer efficiency.

Features
　　Good lateral distribution of liquid and gas. Highest theoretical stages per meter of packed height. Lower specific pressure drop per theoretical stage. Less liquid hold up. Economic operating loads. The weir mesh packing with high number of theoretical plates and low pressure drop per meter. Small hold-up, most economical load range: F factor 1.5—2m/s kg/m3. minimum liquid load approx: 0.2 m3/m2·h

Materials
　　SS 304, SS 316,SS 316L or any other metal at request.
Applications
　　Fine Chemical, Flavours, Isomers Separation. The separation of thermally sensitive materials, Pilot and laboratory columns. Reform existing columns for increased Performance.and system of ethylbenzene / benzene second, hexamethylene kelone/ hexamethylene mellow, oneself lactam. absorb or regeneration tower.
