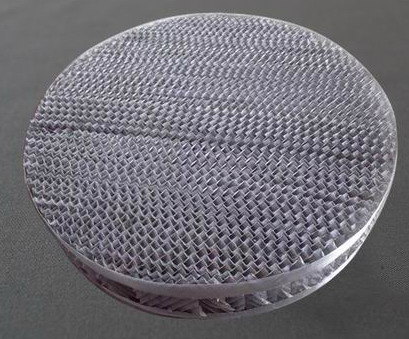

CY700 BX500 wire mesh corrugated strucutre tower packing

Wire mesh corrugated Structure tower packing is the important milestone of development of structured packings. It's made up from silk screen tablets with bellows and this bellows have 30 or 45 inclination.

The advantage is; High efficiency; Lower pressure drop and higher flux.

Material: SS304, SS316L, Monel 400 etc

Technical data:

Product name

Material

Model

Peak Height

Surface area

Theoretic-al plate

Void volume

Pressure drop

F Factor

㎡/m³

I/m

Mpa/m

m/s(kg/m3)^0.5

Wire mesh Corrugated structure tower packing

Stainless steel

Cy700

4.3

700

8-10

4.5-6.5×10^-4

1.3-2.4

BX500

6.3

500

4.5-5.5

3.0×10^-4
