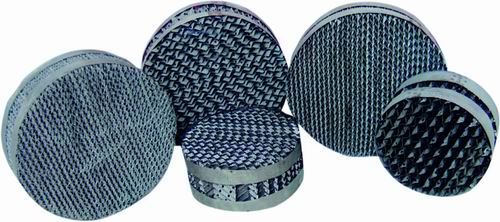

Metal Structured Packing 125Y,250Y,350Y,500Y
.png)
Metal perforated plate corrugated packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.
specification
The packing remains structure of metal wire gauze packing, is produced with channel corrugaion perforation and strengthens surface dripping wet abitity,then increases mass transferring efficiency.
|
Model
|
Ntp piece/m
|
Surface area
m2/m3
|
Void fraction m3/m3
|
per plate
Mpa/m
|
Bulk density
kg/ m3
|
Max.F-factor
m/s.(kg/m3)0.5
|
m3/m2.hr
|
|
125Y
|
1-1.2
|
125
|
0.98
|
2×10-4
|
85-100
|
3
|
0.2-100
|
|
250Y
|
2-3.0
|
250
|
0.97
|
3×10-4
|
170-200
|
2.6
|
0.2-100
|
|
350Y
|
3.5-4
|
350
|
0.94
|
2×10-4
|
240-280
|
2.0
|
0.2-100
|
|
500Y
|
4-4.5
|
500
|
0.92
|
3×10-4
|
170-200
|
1.8
|
0.2-100
|
|
125X
|
0.8-0.9
|
125
|
0.98
|
1.4×10-4
|
85-100
|
3.5
|
0.2-100
|
|
250X
|
1.6-2
|
250
|
0.97
|
1.8×10-4
|
170-200
|
2.8
|
0.2-100
|
|
350X
|
2.3-2.8
|
350
|
0.94
|
1.3×10-4
|
240-280
|
2.2
|
0.2-100
|
|
500X
|
2.8-3.2
|
500
|
0.92
|
1.8×10-4
|
170-200
|
2.0
|
0.2-100
|
|
