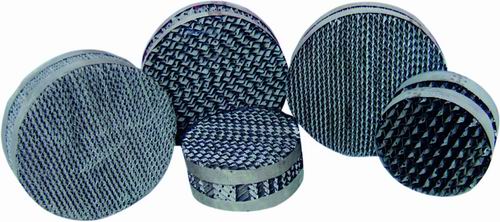

Metal Corrugated structure packing

Metal Corrugated structure packing is perforated 70 very small holes with thorn per square centimeter, then is pushed to corrugated sheet, finally it is assembled to coil. Because the wetting ability increases, it still has the excellent separation performance of wire gauze packing when liquid flow is large.

Material:
Metal Protruded Corrugated Sheet Packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.

Application:
Suitable for fields requiring high degree separation such as industry of fine chemicals, solvent recovery and chemical product refining, etc.

The technical specification:

Type	specifific surface are m2/m3	Void Volume %	Heaping Weight Kg/m3	Wave Height mm	Theoretical plate number m-1	Δ P Pa/m	Max.F-factor m/s(kg/m3)0.5
250Y	250	97	85-100	12.5	2.5-3.0	300	2.6
500Y	500	93	170-200	6.3	3.0-4.0	200	2.1
700Y	700	85	240-280	4.5	5.0-7.0	900	1.6
