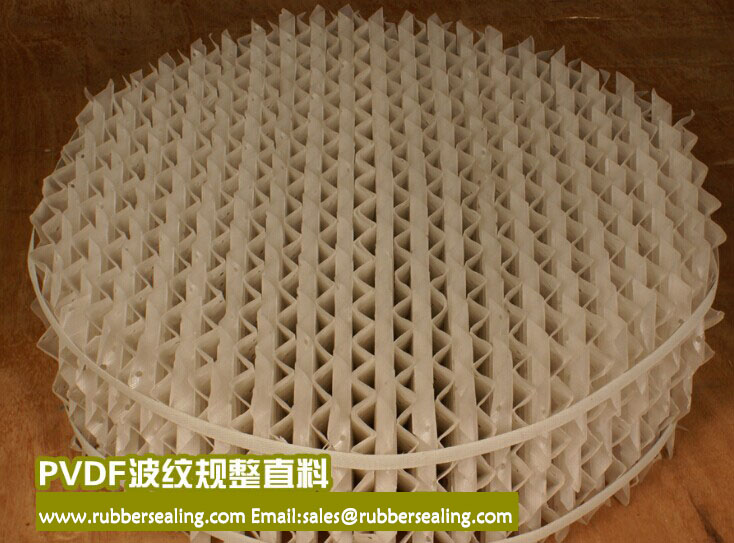

PVDF STRUCTURED PACKING 250Y
Plastic corrugated structured packing
PVDF Structured packing with a light weight, high flux, low pressure drop, high surface area, easy to replace and so on. Corrugated packing made of polypropylene and polyacrylonitrile blend woven wire mesh components. Polypropylene PVDF plate corrugated packing can be used for improving mass transfer efficiency, the board may openings. Plastic structured packing are: Corrugated Packing corrugated packing, corrugated packing and helical corrugated packing.
Technical Data:
| Style |
Surface Area
m2/m3 |
Void
% |
Weight
kg/m3 |
theoretical plates
m-1 |
Pressure Drop
Pa/m |
F factor
m/s.(kg/m3)0.5
|
Fluid load
m3/m2.h |
| SB-125Y |
125 |
98.5 |
37.5 |
1.0-2.0 |
200 |
3 |
0.2-100 |
| 125X |
0.8-0.9 |
140 |
3.5 |
| SB-250Y |
250 |
97 |
75 |
2.0-2.5 |
300 |
2.6 |
| 250X |
1.5-2.0 |
180 |
2.8 |
| SB-350Y |
350 |
95 |
105 |
3.5-4.0 |
200 |
2.0 |
| 350X |
2.3-2.8 |
130 |
2.2 |
| SB-500Y |
500 |
93 |
150 |
4.0-4.5 |
300 |
1.8 |
| 500X |
2.8-3.2 |
180 |
2.0 |
Plastic technical：
| Material |
PE |
PP |
RPP |
PVC |
CPVC |
PVDF |
| Density，g/cm3 |
0.94-0.96 |
0.89-0.91 |
0.92-0.94 |
1.32-1.44 |
1.50-1.54 |
1.75-1.78 |
| Temp,℃ |
≤90 |
≤100 |
≤120 |
≤60 |
≤90 |
≤150 |
| Corrusion resist |
Corrusion resist |
| Compressive strength , N/mm |
≥6.0 |
≥6.5 |
≥7.0 |
≥6.0 |
≥8.0 |
≥10.0 |
|
